1/1

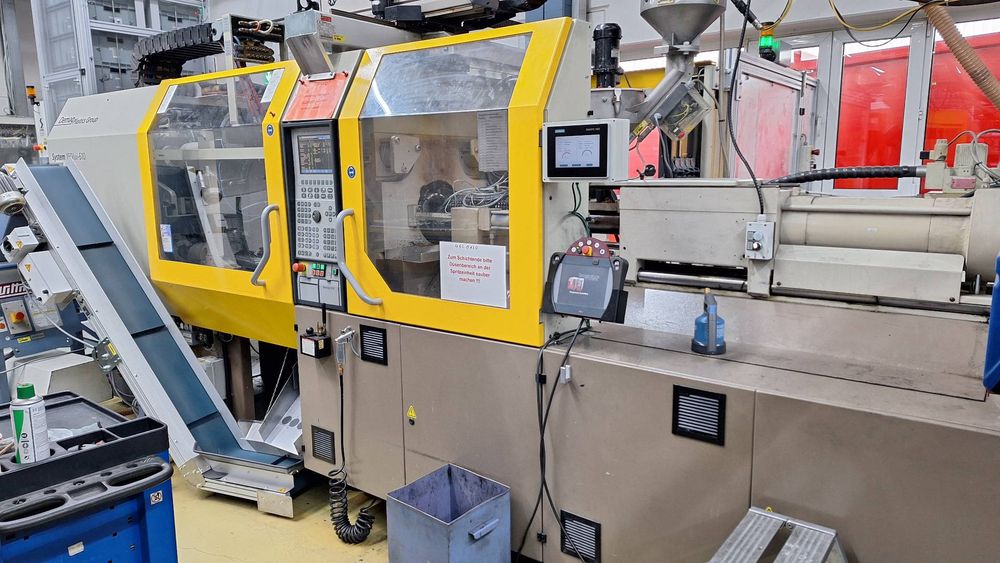

Demag 150-610. System NC4 150 T
Ref :
2748890-6-AW
Condition :
Used
Manufacturer :
Demag
Model :
150-610. System NC4
Capacity :
150 T
Year(s) :
2005
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Clamping unit
Clamping force 150 ton
Opening stroke 500 mm
Distance between tie bars 500 x 500 mm
Mould height min. 250 mm
Opening width 750 mm
Platen size (h x v) 750 x 750 mm
Injection unit
Screw diameter 45 mm
Injection volume 323 cm³
Shot weight 290 g
Injection pressure 1973 bar
Measurements and weight
Dimensions 5.45 x 1.63 x 2.1 m
Machine weight 7500 kg
Robot
Producer Wittmann
Type W721-0231
Year 2005
