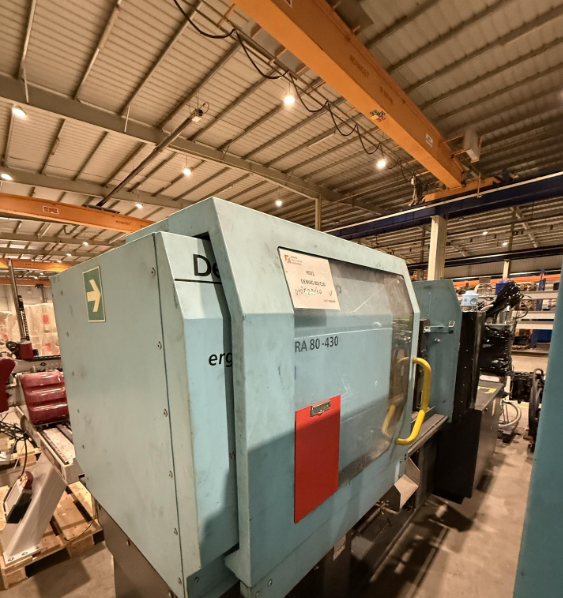

Demag Ergotech extra 800-430 80 T

Clamping Unit (800 kN / 80 t)
Clamping Force: 800 kN (80 tonnes)
Distance between tie-bars (h x v): 400 x 400 mm
Size of mould plates (h x v): 540 x 540 mm
Min. mould height: 250 mm
Max. open daylight: 700 mm
Opening stroke: 450 mm
Ejector stroke: 150 mm
Ejector force: 41 kN
Max. mold weight: 700 kg

Injection Unit (430)
Screw diameter: 40 mm (typical)
Swept volume: 231 ccm
Injection pressure: 2025 bar
Screw length (L/D): 20
Plasticising rate: 160 g/s PS
Injection rate (into air): 33 g/s PS
Number of heating zones: 4
Nozzle stroke: 200 mm

General Dimensions & Weight
Control system: NC4
Weight: ~3900 - 4100 kg
Dimensions (L x W x H): ~4.2m x 1.32m x 2m
Additional Equipment: Often equipped with EuroMap 67,
hydraulic core pulls, and air valves.
