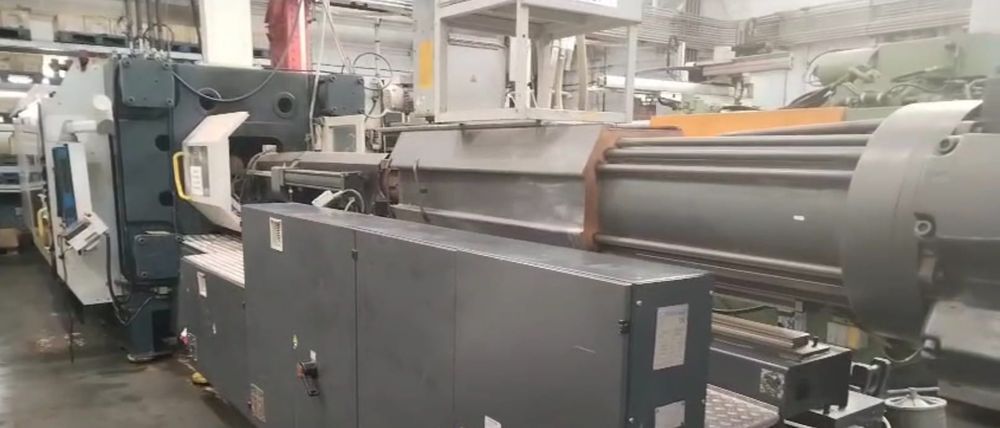

Demag Injection Molding Machine 1000 T

Ref : 2789474-6-GO

Condition : Used

Manufacturer : Demag

Model : Injection Molding Machine

Capacity : 1000 T

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Last check : 26 Jun. 2026

Screw diameter (mm): 110mm
Plasticizing capacity (g/s): 130
Injection capacity (cm³/s): 780
Injection pressure (bar): 1815 bar
Injection volume (cm³): 4370 cm³
Mold thickness (min/max): 500 x 1200mm
Distance between tiebars (h x w): 1400 x 1120mm
Platen dimensions (h x w): 1950 x 1670mm
Closing stroke: 1250mm
Centering ring diameter: 250mm
Ejection passage diameter: 160mm
Ejection stroke: 350mm

Optional:
Sequential injection
6 hydraulic cores
2 pneumatic cores
ejection plate
bimetallic sleeve screw.

+ Robot Star ref TX 1800 EMI
