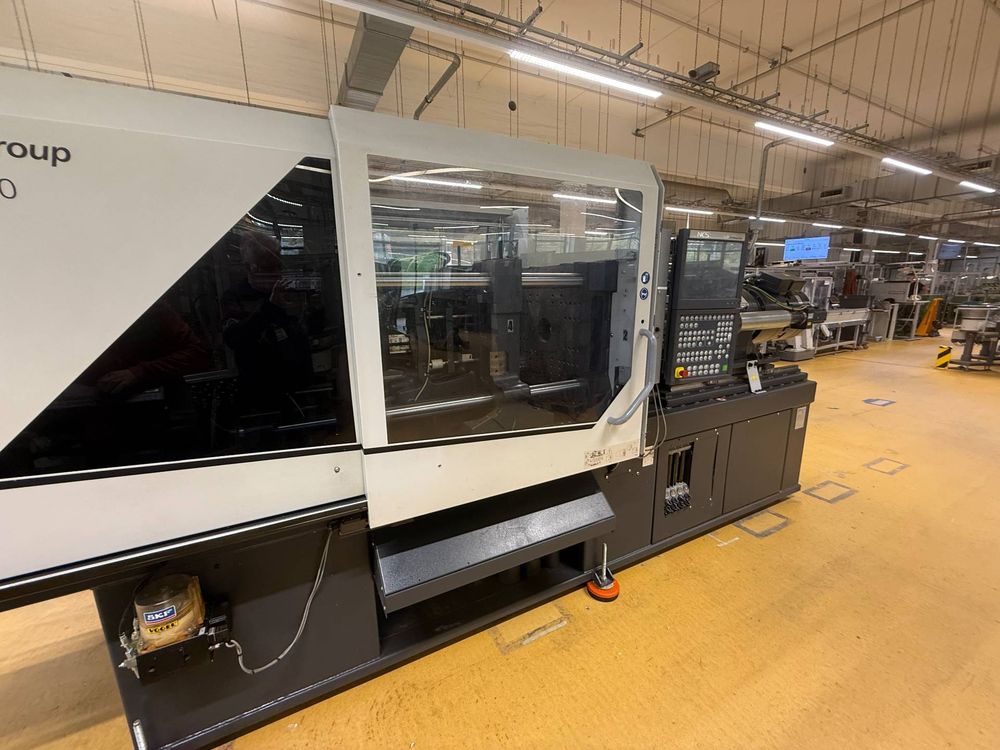

Demag IntElect 100/470-180 NC5 100 T

Clamping unit
Clamping force 100 tons
Opening stroke 380 mm
Distance between tie bars 470 x 420 mm
Mould height min. 200 mm
Mould height max. 430 mm
Platen size (hxv) 690 x 620 mm

Injection unit
Screw diameter 30 mm
Injection volume 85 cm³
Shot weight 76 g
Injection pressure 2180 bar

Measurements and weight
Dimensions 4.8 x 1.4 x 2.2 m
Machine weight 5500 kg

Additional Information:
The Sumitomo (SHI) Demag IntElect series comprises high-precision,
all-electric injection molding machines specifically designed for engineering plastic parts,
automotive applications, electronic components, and demanding series production.

All main machine movements are driven by direct-drive servo electric motors.
Injection, metering, mold movements, and ejection functions are
all fully electric, enabling maximum precision, excellent repeatability,
and optimal process stability.

The IntElect series is particularly renowned for its low energy consumption
and high production precision. Compared to conventional hydraulic injection molding machines,
energy savings of approximately 60% to 80% can be achieved, depending on
the application. Simultaneously, the low heat generation reduces cooling requirements
and lowers overall operating costs.

The machine features a direct servo injection and metering system,
enabling very fast response times and highly precise injection control.
The injection unit is equipped with four heating zones,
ensuring homogeneous plasticization and stable process conditions,
especially with engineering plastics.

The most important advantages of the IntElect series:
* All-electric direct-drive servo technology
* Very low energy consumption
* High precision and process repeatability
* Quiet and low-vibration operation
* High dynamic servo performance
* Low maintenance
* Clean production environment
* Ideal solution for technical and precision parts
* Suitable for fast series production.

Due to its long service life, stable production output,
and high energy efficiency, the Sumitomo Demag IntElect series remains one
of the most sought-after all-electric injection molding machines on the market.
