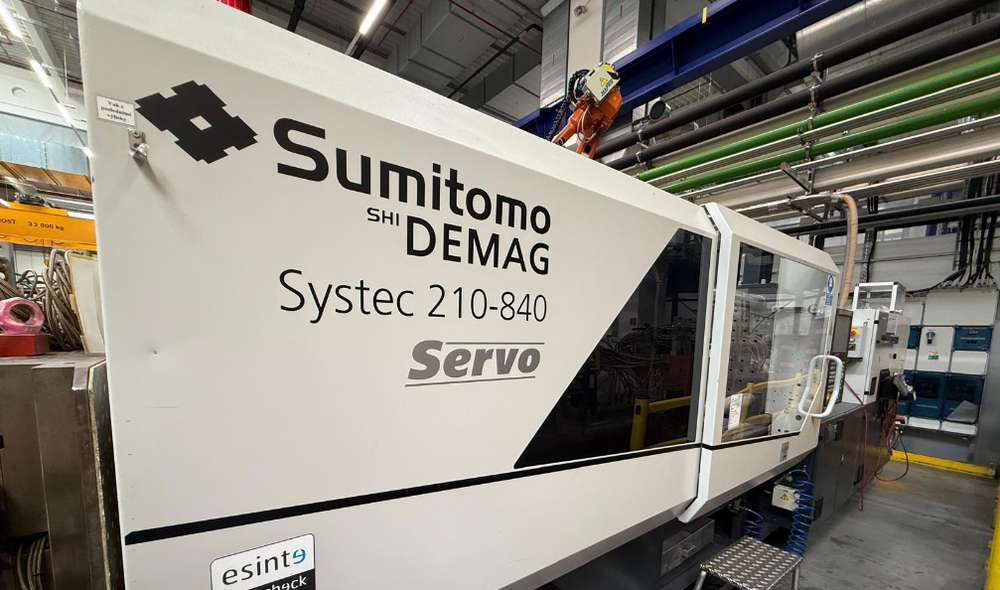

Demag Systec 210-580-840 210 T

Manufacturer: Sumitomo SHI DEMAG
Type of machine: Systec 210/580-840
Clamping force [kN]: 2100
Shot volume [cm3]: 358
Clearance between tie bars hor. [mm]: 580
Clearance between tie bars vert. [mm]: 580
Mold height min. [mm]: 340
Mold height max. [mm]: 690
Opening stroke max. [mm]: 575
Daylight max. [mm]: 1365
Year of manufacture: 2015
Machine dimensions L/W/H [mm]: 6022 / 1556 / 2090
Control unit and software version: NC3
Max. weight of entire molding tool [kg]: 3300
Screw diameter [mm]: 45
Screw design: 3 zone
Screw relation (length/diameter): 20:1
Screw back flow valve: Yes
Ejector system type: Hydraulic
Installed heating power [kW]: 39
No. of integrated hot runner circuits: 12
Number of temperature control electrical valves: 28
Number of cascade controls: 2
Connection to central drying system: Yes
Unloading robot system available: Yes
Number of tempering units: 3
Tempering units max. temperature [°C]: 160
Machine oil capacity [l]: 400
Net power of hydraulic pump engine [kW]: 26
