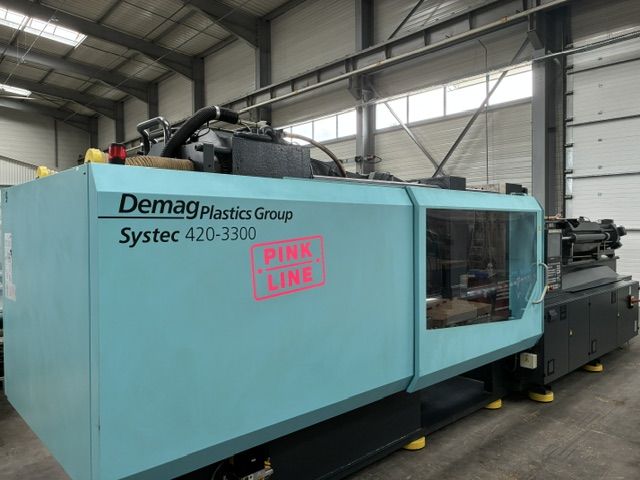

Demag Systec NC5 820-3300 420 T
Ref :
2797227-6-AW
Condition :
Used
Manufacturer :
Demag
Model :
Systec NC5 820-3300
Capacity :
420 T
Year(s) :
2008
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Injection Unit
Screw Diameter: 80 mm
Calculated Injection Volume: 1779 cm³
Length/Diameter Ratio: 20 L/D
Material Pressure: 1855 bar
Closing Unit
Closing Force: 4200 kN
Opening Stroke: 770 mm
Minimum Mold Thickness: 380 mm
Maximum Distance Between Platters: 1595 mm
Passage Between Columns: 820 x 820 mm
Platters Dimensions: 1200 x 1200 mm
General
Heating Power: 75 kW
Total Installed Power: 105 kW
Oil Capacity: 760 L
Dimensions Dimensions: 9 x 2.2 x 2.4 m
Weight: 24,885 kg
Other
Equipment: 2 hydraulic cores, EUROMAP 67 robotic arm
Commissioning date: 2008
Tonnage: 420
