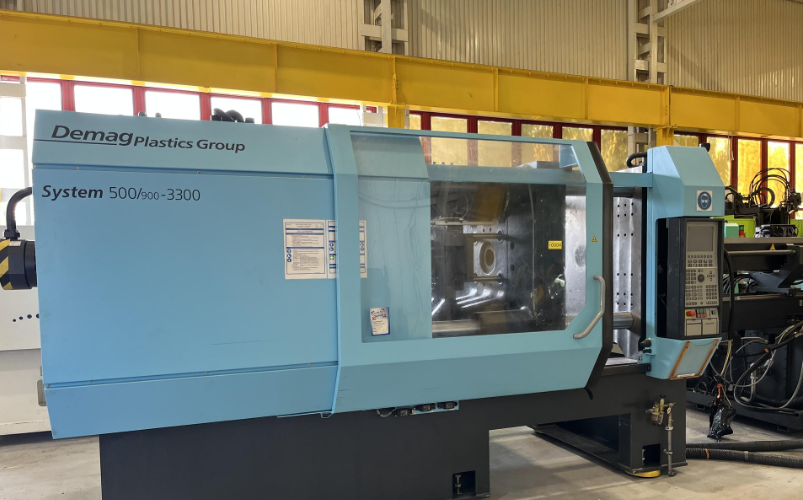

Demag System 500/900-3300 500 T

Clamping unit
Clamping force: 500 tons
Platten dimension: 1300 x 1200 mm
Distance between tie bars: 900 x 800 mm
Mold height min. : 440 mm
Mold height max. 880 mm

Injection unit
Screw diameter: 80 mm
Injection pressure: 1855 bar
Injection volume: 1779 cm3
Shot weight: 1620 g
Transport dimensions Dimensions: 8,7 m x 2.3 m x 2,5 m
Weight (clamping unit/injection unit): 16.500/5.400 kg

4x Core pullers
Cascade control 2-way hydraulic
EUROMAP 67 interface
Additional connections for 2 core pulls on the fixed tool clamping plate
10-way cooling water flow regulator with temperature display
Additional nozzle controller; 1 circuit; PID controller
