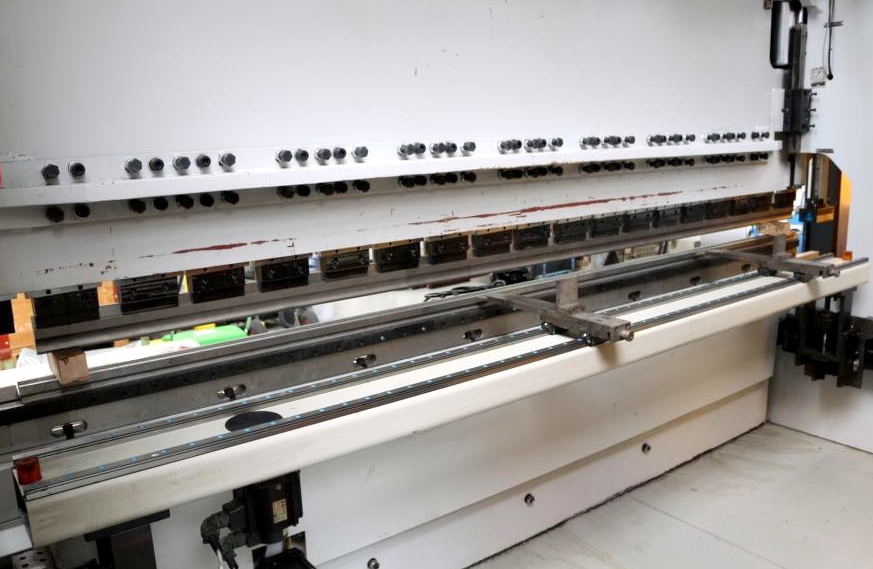

Deratech ULTIMA PLUS 160/4100 160 t

Press force 160 t
Chamfer length 4100 mm
Distance between columns 3600 mm
Column arm 400 mm
Ram stroke speed 200 mm/sec
Work speed 10.0 mm/min
Return speed 165 mm/sec
Work stroke approx. 350 mm
Daylight approx. 660 mm
Oil volume 450 l
Table height 830 / 950 mm
Table width 75.0 / 60.0 mm
Voltage 400 V
Total power requirement 18.5 kW
Weight 13,440 kg
Dimensions L-W-H 5150 × 2050 × 3150 mm
CYBELEC CNC control DNC 880 S
Swiveling control panel front right
2D graphic programming and product display
Tool and program library
CNC-controlled axes Y1 + Y2 + X + R axis
CNC electro-motorized back stop with ball screws (X axis)
CNC electro-motorized height adjustment of stop beam (R axis)
2 manually adjustable back stop fingers (Z axis)
2 front movable support arms with T-slot sliding system
1 set of bending/insert tools
AMADA / SYSTEM A tool system
Laser protection device in front of machine
Safety device behind machine (door)
Freely movable foot switch
Original operating instructions
