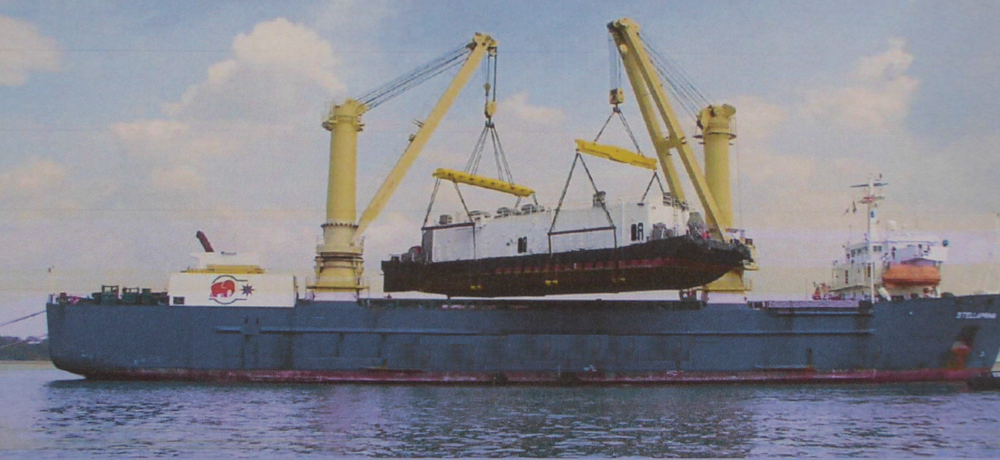

Desalination Barge

Anchoring Equipment
Qty 2port side
Qty 2Stb Side
Rated8000 LBs
Wire Rope600 ft
Anchors 4
Type:1000Lbs Standard Danforth

Bow Crane
Manufacturer
GRU Idrauliche (Morgan Crane Comp)
Type: Single Arm Hydraulic Articulating
41895 Lbs
6ft. 7inch
2,425 Lbs
30 ft.

Raw Water Pumps
Qty2
Type Centrifugal Direct coupling

Cartridge Filter Assy
Qty2
Capacity12 filters

Multimedia Filters
Qty6

Reverse Osmoses Block X 2
QtyBlock of 16 Tubes
Each Tube
5 reverses osmosis Membrane element

Chlorination Unit
Qty1 Unit

Discharge pumps
Qty 2
Type421-8B
RPM1750
GPM260

Shore Discharge Hydraulic Hose Reel
MaterialCoflexip
Length2500 feet

Overhead work electric crane
Make Spanmaster5tons

Ventilation
Qty 6Extractors
Qty 2Blowers

Air Compressor
Bedford Indiana NATLBD 31823
Welding Set Lincoln

Workshop
Qty 1Press FAMCO
Qty 1Pillar Drill Rockwell
Qty 1Grinding wheel Baldor
Qty1Vice
Qty1Work bench

Accommodation
Bunk bedsQty 3 sleeps 9
Fridge freezerQty 1
Washing MachinesQty 2

High pressure pump
Type
Roto-jet V belt driven
Rating
350 gpm(1325(L/min) at 805psi (5550 Kpa)
HP/RPM: 260 BHP/4380 rpm

For Main RO Pumps 1
Type
Diesel :
Power Rated325hp @2100rpm/ 250hp/1800rpm
Engine Model3406 DI
Arrangement N0.4W 841
Total Hrs841

Main RO Pump 2:
Type
Diesel :
Power Rated
325hp @2100rpm/ 250hp/1800rpm
Engine Model3406DI
Total Hrs:709

Total 4 engines 2 assembled with pumps and 2 new spare
Generator 1
TypeDiesel
Power rated:155 KW
Model3306TA
AR1W3818
Total Hrs807

Generator 2
TypeDiesel
Power rated:155 KW
Model:3306DI
AR:1W3818
Total Hrs:814
