DG 2516

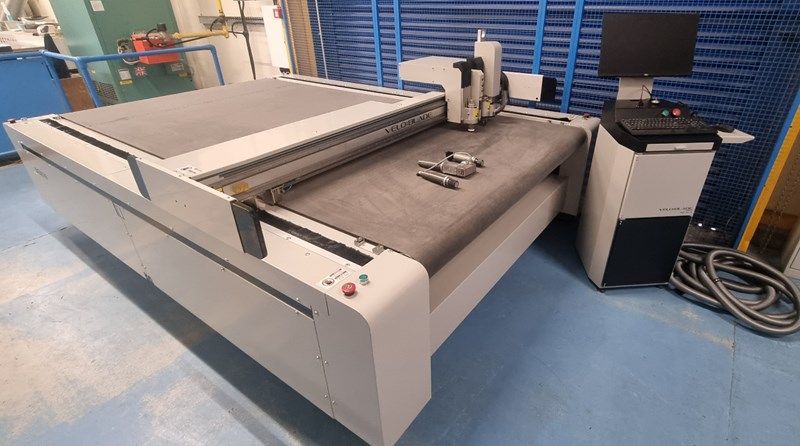

Vello Blade DG 2516 Digital Flatbed Cutter/Creaser/Sample Maker
Design & Performance
A digital die-cutter that gives you the freedom to easily create unique and intricate products at the most costefective price on the market.
Integrated with high quality cutting, creasing and perforating tools, the VeloBlade Nexus enables you to cut any shape or structure directly from your designs, in just one pass.
Materials are held securely in place using the high-quality vacuum grip conveyor belt with a lateral pull force of 151.5N.
Material fixing: Vacuum
Max. sheet size (mm/inches) 2500mmx1600mm/98”x63”
Min. sheet size (mm/inches) 210mmx297mm/8”x12”
Tools: Circular Knife, drag knife, crease wheel, kiss cut knife, v-cut knife, oscillating knife (optional) and CNC router (optional)
Blade Over 100 options
Max. cutting speed 1500mm/s
Max. cut depth =25mm** (with oscillating/routing tool)
Cutting Media AS PP paper, stickers, PVC board, KT board, foamed PVC board, acrylic sheets, dibond, vinyl, corrugated paper, honey comb board and many more.
Repeat accuracy +0.1mm
Driving system: Imported intelligent digital servo control system
Camera registration system: CCD registration system
Voltage 32 Amp / 3 phase socket required & 4 x 13 Amp sockets
Power Consumption (W) 11500
Overall Dimensions (mm/inches) 3418x2402x1200mm/135x95x48”
Gross Machine Weight 745Kg
Tooling
The machine comes with the following tooling:
Pen Head
4 Blade/knife Heads
Creasing and scoring Head
Vacuum Head for Waste
Many spare tools to go in the heads – see photo of tool drawer
