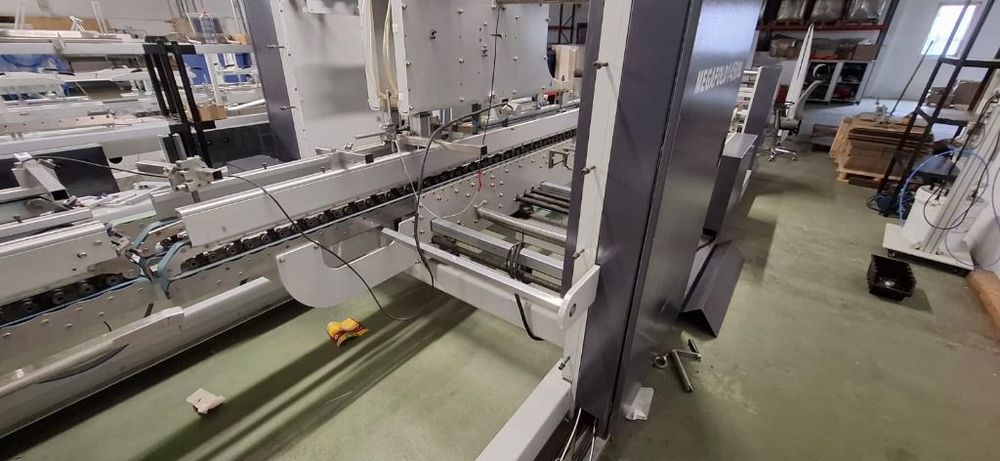

DGM MEGAFOLD 1450

Options :
Specialty Corrugated Folder-Gluer
STRAIGHT LINE, CRASH LOCK, DOUBLE WALL
4 CORNER I 6 CORNER BOXES
MAX. SPEED: DO 300?M/MIN
MATERIAL THICKNESS: UP TO 1200 G/M² FOR SOLID BOARD AND CORRUGATED CARDBOARD E, C, B, AB
WITH 3 OR 5 LAYERS (MAX. ~8 MM BEFORE FOLDING, ~20 MM AFTER FOLDING)
MOTORIZED LINEAR GUIDES FOR CARRIER MOVEMENT ENSURING PRECISE TRANSPORT AND POSITIONING
FRICTION FEEDER WITH ADJUSTABLE VIBRATOR, SIDE GATES, SERVO MOTOR DRIVE
BELTS WITH SUCTION FUNCTION, TOUCH PANEL
REAR SUPPORT FOR LONG BLANKS PRE FOLDER DO 180° (FLAP), PRE FOLDER DO 135° (THIRD CREASE)
CREASE OPENERS 5. GLUING UNIT ONE LOWER (LEFT) AND OPTIONAL LOWER RIGHT GLUE TANKS
UPPER COLD GLUING SYSTEM AVAILABLE ON REQUEST- EASY TO DISMANTLE AND CLEAN
