Dilo, Spinnbau, Temafa Needle punching line

Max. working width: 5.000mm
Operated fibres: PP / PES + BiCo – 1,7-13 dtex
Product weights: 70-300 g/m² (gsm)
Max. capacity: 700 kg/h
Max. line speed: 18 m/min

Composed of:

1. Fibre Preparation
Make: Temafa
Year: 1987

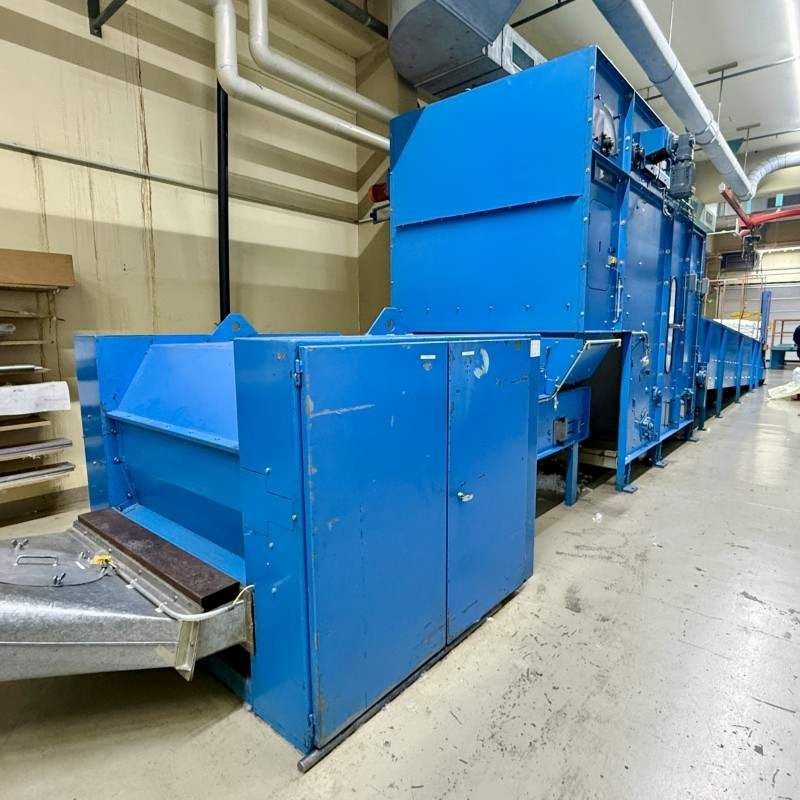

1x Bale opener with long feeding table
Length feeding table: 8.000 mm
1x Fibre drum opener – width 1.200mm
1x Fibre disc opener
1x Fine opener
1x Fibre fan

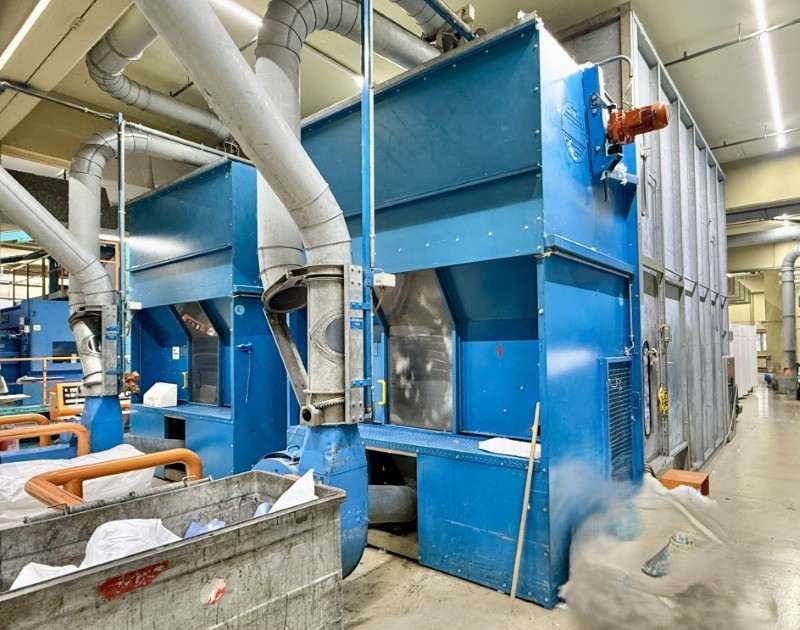

2. Fibre Blending & Buffer
Make: Temafa
Year: 1987

2x Blending bin, Type Mix Master
Box Dimensions:
W 3.000 x L 6.000 x H 5.000 mm
2x Fibre transport fan
Several pipes & switches

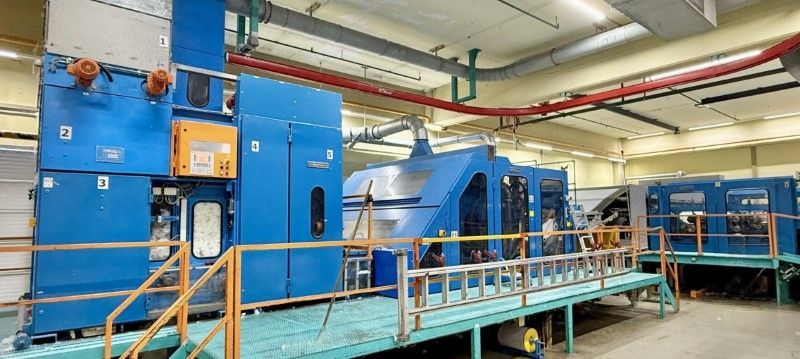

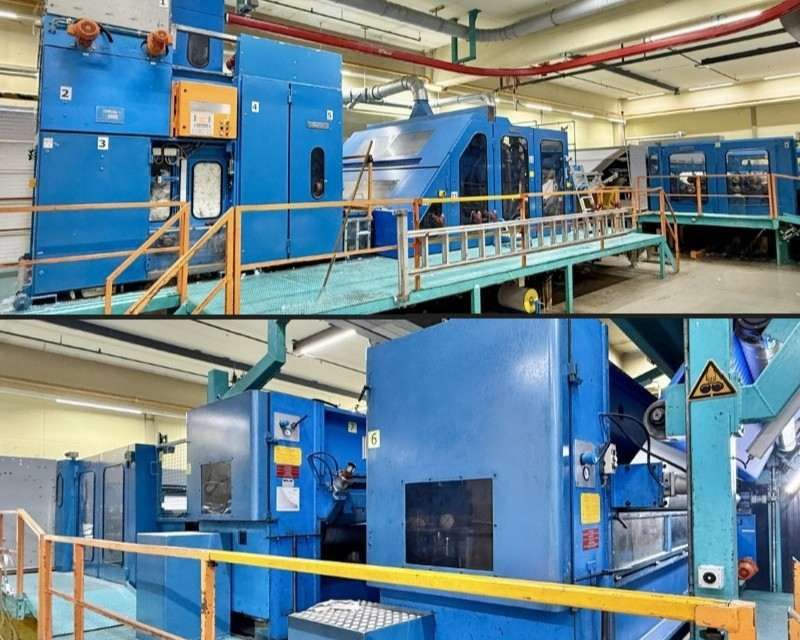

3. Carding Machine with Scale & Feeder
Make: Spinnbau
Year: 1988
Feeder: Hopper Feeder
Feeding with silo
Exit with vibrating chute
Scale: Conveyor scale
Card: Nonwoven card 216
Working width: 2.500mm
Setup: Dish feeding
Breast cylinder with 1x W/S
Transfer roller
Main cylinder
with 5x W/S + 1x W/S
2x doffer, each with
– 2x condensing rollers
– Take-off rollers

4. Cross Lapper
Make: Andritz
Type: Profile
Year: 1995
Working width: 2.500mm / 5.500mm
Max. mech. speed: 120 m/min

5. Web drafter
Make: Spinnbau
Year: 1988
Working width: 5.000mm
Setup: 6 roller pairs

6. First Needle Loom
Make: Dilo
Type: OD-II 50
Year: 1988
Working Width: 5.000mm
incl. feeding system CBF
Needle pattern: 2 W24-200-108-9000
2x 4.500 needles /m

7. Second Needle Loom
Make: Dilo
Type: UD-II 50
Year: 1988
Working Width: 5.000mm
incl. feeding system CBF
Needle pattern: 2 W24-200-108-9000
2x 4.500 needles /m

8. Thermal bonding & Coating
Year: 1988
Working Width: 5.000mm
Setup: Top foam coating
1st Fleissner Omega dryer
Bottom foam coating
2nd Fleissner Omega dryer

9. Including:
– All necessary control cabinets
– Control desk
– Fans / Accessories
