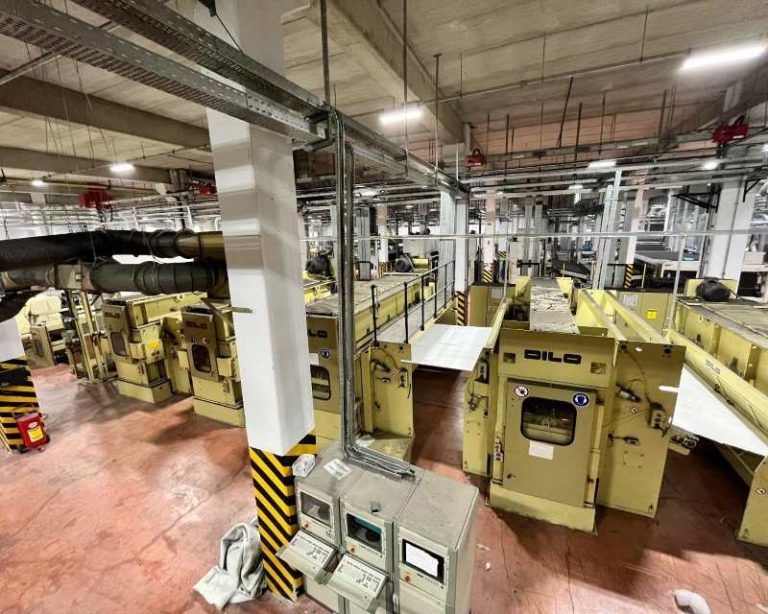

Autefa, Dilo, Spinnbau, Trutzschler needle-punch-line

Max. working width: 3.500mm
Operated fibres: general fibers, aramid
Product weights: 40-1000 g/m² (gsm)
Max. capacity: 500 kg/h

Composed of:
1. Trützschler Bale Opener & Fibre Blending / Storage
Year: 1996
Type: BOW 1200 & MCM 8/1200
Working width: 1.200 mm

2. Trützschler Card Feeding Unit
Year: 1996
Type: FBK 536
Working width: 1.200 mm

3. Spinnbau Carding Machine
Year: 1996
Card: Double Doffer card
Working width: 2.500mm
Setup:
Dish feeding
Breast cylinder with 1x W/S
Transfer roller
Main cylinder with 6x W/S
Top doffer with
– Condensing rollers
– Take-off rollers
Bottom doffer with
– Take-off rollers

4. Autefa Cross Lapper
Type: CL4000
Year: 1996
Working width: 3.000mm / 4.500mm
Max. mech. speed: 100 m/min

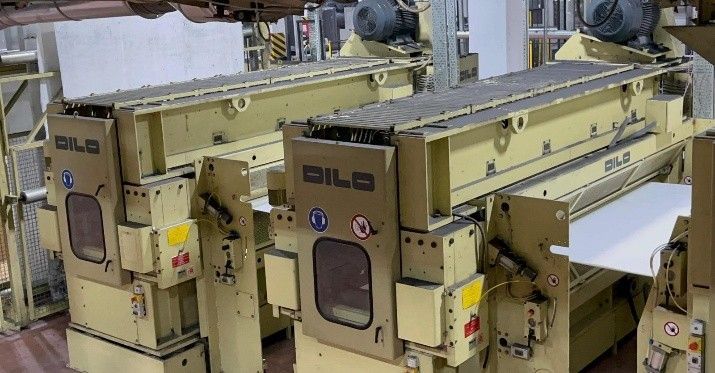

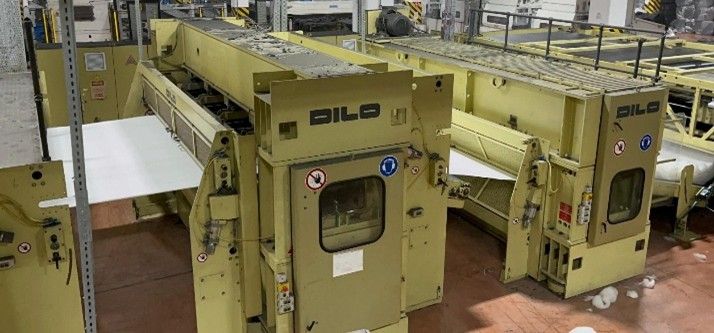

5. Dilo First Needle Loom
Type: OD-I 40
Year: 1996
Working Width: 4.000mm
incl. feeding system CBF
Needle pattern: 1x 5.000 needles /m

6. Dilo Second Needle Loom
Type: UD-II B 40
Year: 1996
Working Width: 4.000mm
Needle pattern: 2x 5.000 needles /m

7. Dilo Third Needle Loom
Type: OD-II B 40
Year: 1996
Working Width: 4.000mm
Needle pattern: 2x 5.000 needles /m

8. Dilo Fourth Needle Loom
Type: OUG-II B 35
Year: 1996
Working Width: 3.500mm
Needle pattern: 4x 5.000 needles /m

9. Dilo Fifth Needle Loom
Type: OUG-II B 35
Year: 1996
Working Width: 3.500mm
Needle pattern: 4x 5.000 needles /m

10. Dilo End-of-Line
Year: 1996
Working Width: 3.500mm
Setup: – Accumulator
– Longitudinal cutting
– Winder

11. Including:
– All necessary control cabinets
– Control desk
– Fans / Accessories
