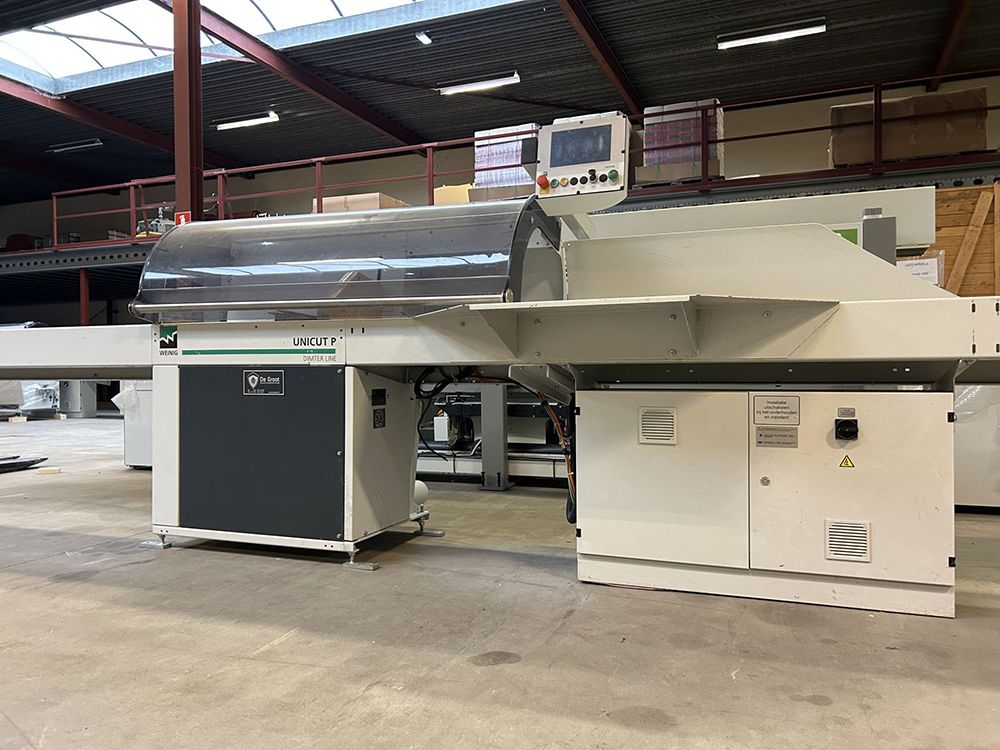

Dimter Unicut P Underlying cutting saw

Saw blade diameter 500 mm.
Saw blade shaft diameter 35mm
Saw blade speed approx 3,000/3.600 r.p.m.
Input Length 80-6.300mm
Input width 30-300mm
Input (saw) height 10-120mm
Fixed length saw min 80mm
Total connection value approx. 10 kW.
Curvature of the wood max. 10 mm/m in all directions and a/d to length max. 20 mm Positioning accuracy + / - 0.5 mm
Types of wood: softwood or hardwood
Wood weight max. 60 kg
Speed push-up (stepless control) 60 m/min
Saw Motor 7.5 KW (10HP).
Working height approx. 1000mm
Mounting supports input table
Machine table approx. 10 ° angle
Length input table approx. 7200mm
Push-up block width approx. 290mm
Spout table 2400mm
Noise level unloaded machine 71dB
Noise level loaded machine 88dB
Voltage approx. 400 volts / 50 Hz
Total connection value approx. 9kW
Air connection 6 bar / 250nl/min
Suction speed 30m/sec
Extraction connection diameter 125mm
Extraction volume approx.1300 m3 /hour
