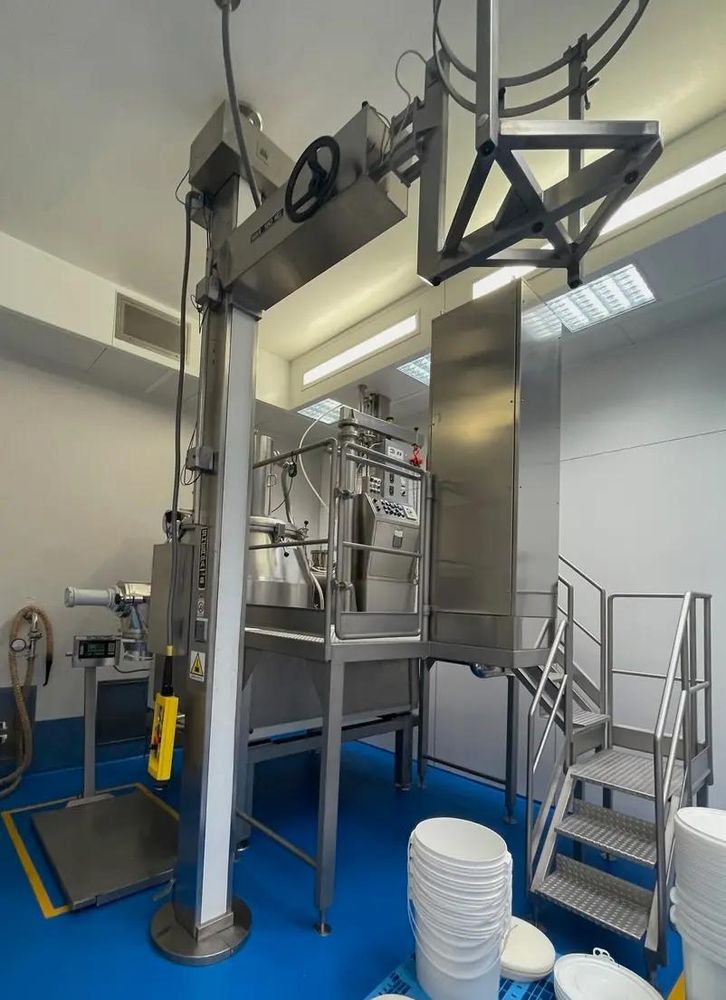

Diosna P800

Machine for premixing and granulation.

MACHINE CHARACTERISTICS
Main drive pole-changing: 35/53 kW
Mould speed: 49/98 rpm
Chopper drive pole-changing: 10/12 kW
Chopper speed: 1460/2935 rpm

WORKING CHARACTERISTICS
Premixing: the mixing tool, rotating at 4 or 8 m/sec. near the bottom of the hopper, sets the mix in motion in a drum-shaped movement
Smooth moist granulation: all grains are uniformly wet, so that a loose build-up granulate of up to 2 mm is produced. Larger lumps are beaten with the chopper tool

Pre-mixing: 2 min (approx)
Damp granulation: 2 - 4 min (approx)
Discharge: 30 sec (approx)

Total capacity: 800 l
Batch size for moist granulation: 280-350 kg (depending on the consistency of the recipe)

DIMENSIONS
Dimensions: 3085 x 1765 mm
Height to upper edge of mixing container: 1550 mm
Sep. control cabinet (incl. base): 800 x 400 x 1940 mm

Weight of machine: 3450 kg
Weight of control cabinet: 200 kg
