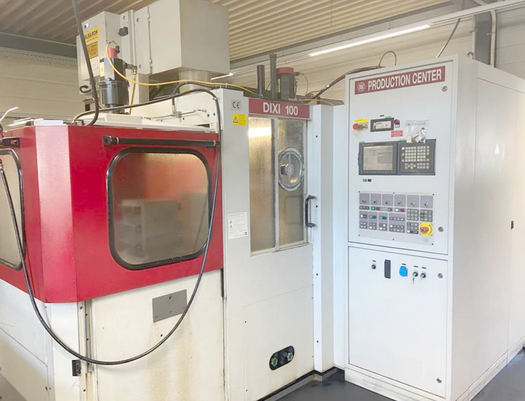

Dixi DPC 100 4 Axis

X-Axis Travel: 500 mm
Y-Axis Travel: 400 mm
Z-Axis Travel: 500 mm
4 Axis
4 Pallets
Pallet Size: 400 x 400 mm
Max Workpiece Weight: 300 kg
Control: GE FANUC Series 16-T
Coolant System: 500 l
High Pressure Coolant: 65 bar
Paper Filtration System
RENISHAW 3D Measuring Probe
Chip Conveyor
Oil Mist Extractor
Spindle Cooling
Spindle Speed: 0 – 12,000 RPM
Spindle Power: 5.5 / 7.5 kW
Spindle Nose: ISO 40 DIN69871
Distance Spindle Nose to Table: 100 – 600 mm
Distance Vertical Spindle to Table: 20 – 420 mm
Feed Range: 1 – 12,000 mm/min
Rapid Traverse: 20 m/min
Tool Magazine: 96 Positions
Max Tool Diameter: 80 mm
Max Tool Diameter with Free Adjacent Pockets: 160 mm
Max Tool Length: 300 mm
Max Tool Weight: 12 kg
Tool Change Time: 2.5 sec
Chip-to-Chip Time: 6 sec
Air Connection: 6 bar
Voltage: 3 x 400V / 50Hz
Total Power Required: 60 kVA
Noise Level: 75 dB(A)
Machine Dimensions: 4,330 x 3,200 x 2,520 mm
Weight: 6,000 kg
