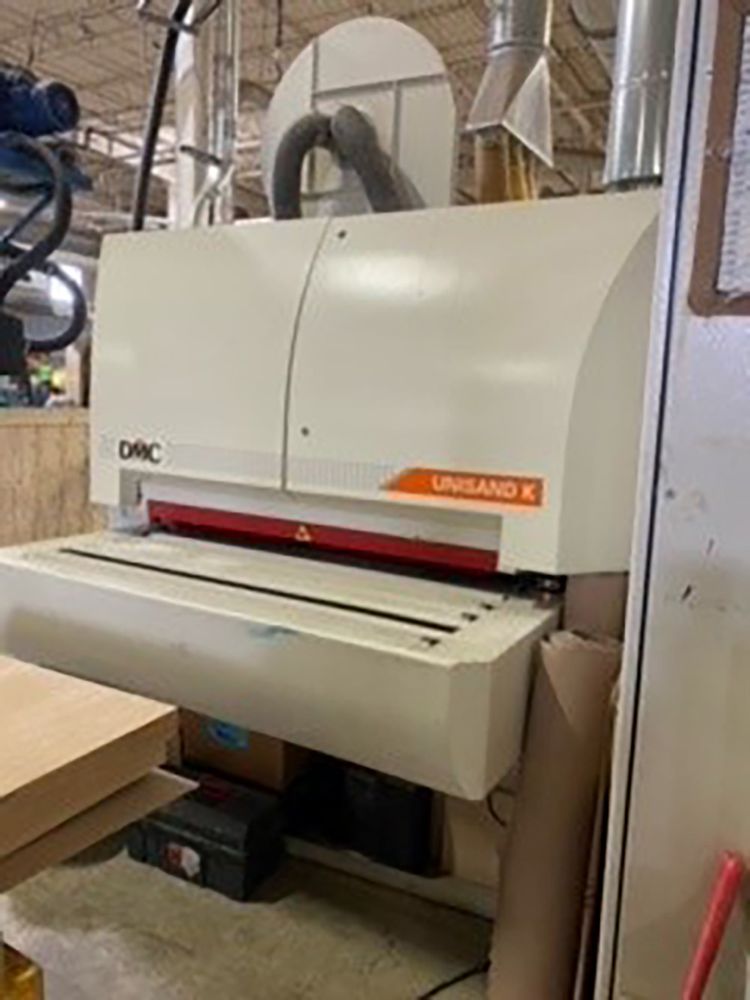

DMC Unisand K 1350

BOTTOM/TOP CALIBRATING SANDING LINE :
Tension: 600 V
Frequency: 60 Hz
Working width: 1350 mm
Abrasive belt width: 1370 mm
Abrasive belt length: 1900 mm
Constant pass line at 940 mm from the floor level

BOTTOM UNITS MACHINE :
1st unit (ROLLER)
250 mm diameter steel roller
Oscillating blowers
Pneumatic on/off for the roller
30 kW motor (=36 kW @ 60 Hz) 36KW = approx 48HP 2nd unit (COMBINED: ROLLER + PAD)
175 mm diameter rubber coated roller (85 shores)
EPICS electronic sectional pad (46 segments)
Oscillating blowers
Pneumatic on/off for the roller
Sanding pad pressure management through control panel
2-speed 18.5 kW motor (= 22 kW @ 60 Hz) 22 KW = approx 30 HP 3rd unit (PAD)
EPICS electronic sectional pad (46 segments)
Oscillating blowers
Sanding pad pressure management through control panel
15 kW motor with inverter control 15 KW = approx. 20 Hp Other devices
Single phase transformer
Autotransformer for inverters
4 kW 4KW = approx 5HP feed mat driving motor with inverter control
Vacuum table to hold-up the feed mat, powered by a 7.5 kW (= 9 kW @ 60 HZ) 9KW = approx 12HP external fan motor with silencer (to hold-up the feed mat)
Oscillating blowers for work piece cleaning at the machine out-feed
Hydra PC control panel

TOP UNITS MACHINE :
1st unit (ROLLER)
250 mm diameter steel roller
Oscillating blowers
Pneumatic on/off for the roller
30 kW motor (=36 kW @ 60 Hz)

2nd unit (COMBINED: ROLLER + PAD)
175 mm diameter rubber coated roller (85 shores)
EPICS electronic sectional pad (46 sectors)
Oscillating blowers
Pneumatic on/off for the roller
Sanding pad pressure management through control panel
2-speed 18.5 kW motor (= 22 kW @ 60 Hz) 3rd unit (PAD)
EPICS electronic sectional pad (46 segments)
Oscillating blowers
Sanding pad pressure management through control panel
15 kW motor with inverter control Other devices
Single phase transformer
Autotrasformer for inverters
4 kW feed mat driving motor with inverter control
150 mm diameter cleaning brush (tampico) at the machine out-feed, driven by a 0.75 kW motor (0,9 kW @ 60 Hz)
