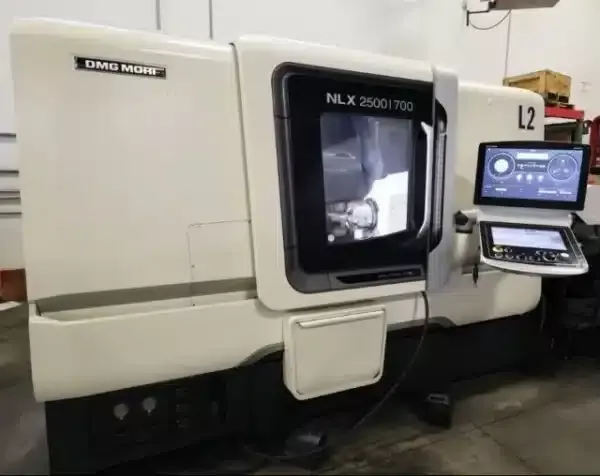

DMG Celos ERGOline Mitsubishi M-730UM 4,000 RPM MORI NLX-2500SY/700 3 Axis

Chuck Size Main/Sub: 10"/6" 3-Jaw Hydraulic Power Chuck
Swing Over Bed: 36.4"
Swing Over Front Cover: 29.7"
Max Turning Diameter: 14"
Max Turning Length: 27.7"
Bar Work Capacity: 3.1"
X-Axis Travel: 10.2"
Y-Axis Travel: 3.9" ±2
Z-Axis Travel: 31.3"

Headstock 2 Travel B-Axis: 28.9"
Max Spindle Speed Main: 4,000 RPM
Max Spindle Speed Sub: 6,000 RPM
Thru Spindle Hole Diameter Main: 3.6"
Thru Spindle Hole Diameter Sub: 1.7"
Number of Tool Stations: 12
Max Rotary Tool Speed: 10,000 RPM
Rapid Traverse Rate X, Z, B: 1,181 IPM
Rapid Traverse Rate Y: 393.7 IPM
Rapid Traverse Rate C: 400 IPM
Control Type: Celos ERGOline Mitsubishi M-730UM

Equipped with Tool Presetter for Main and Sub Spindle
Equipped with Parts Catcher
Equipped with All Live and Turret Tooling as shown in pictures
Equipped with Chip Conveyor
Machine Dimensions: 132" x 83" x 87"
Conveyor Dimensions: 157" x 83" x 60"
Weight: 10,000 lbs
