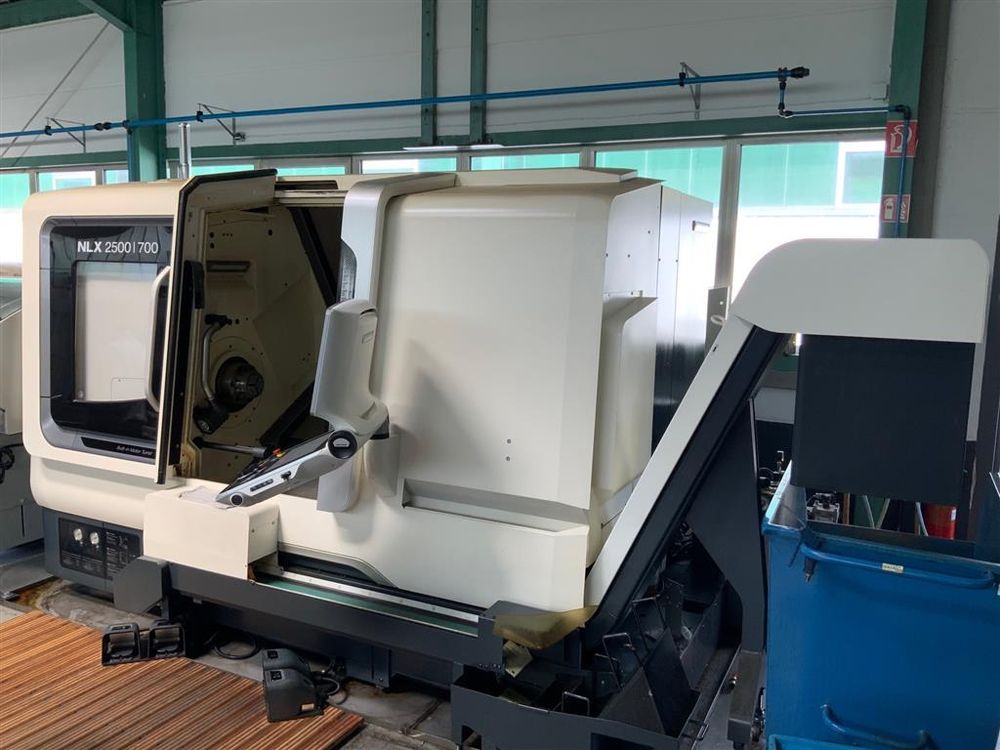

DMG CELOS M730 UM MAPPS 4000 RPM MORI NLX 2500 SY / 700 3 Axis

X Axis Travel: 260 mm
Y Axis Travel: 100 mm (±50 mm)
Z Axis Travel: 795 mm
Rapid Traverse (X/Z): 30 m/min
Rapid Traverse (Y): 10 m/min
Rapid Traverse B Axis (sub spindle transfer): 734 m/min
Control: CELOS M730 UM MAPPS
Swing Diameter: 742 mm
Turning Diameter: 356 mm
Turning Length: 705 mm
Standard Turning Diameter: 275 mm
Spindle 1 Speed: 4000 RPM
Spindle 1 Power: 18.5 / 18.5 / 15 kW
Spindle 1 Max Bar Diameter: 80 mm
Spindle 2 Speed: 4500 RPM
Spindle 2 Power: 11 / 7.5 kW
Sub Spindle Tailstock Function: Yes
Turret Stations: 20
Rotary Tool Stations: 20
Tool Interface: BMT40
Driven Tool Power: 5.5 / 5.5 / 3.7 kW
Driven Tool Speed: 10000 RPM
Coolant Through Subspindle: Yes
Spindle 1 Chuck: Kitagawa B 210 (250 mm)
Spindle 2 Chuck: Kitagawa B 206 (160 mm)
Parts Catcher: Yes
Parts and Total Counter: Yes
Signal Lamp: 3 Colors
Automatic Door: Yes
Robot Interface: Yes
Barfeeder: IRCO SIMAG 80.1.R.II
Chip Conveyor: Yes
Protection Fence Interface: Yes
Total Power Requirement: 38 kVA
Machine Weight: Approx. 6.3 t
Machine Dimensions: 4 (9) × 2.1 × 2.2 m
