DMG Celos Mitsubishi M730U 4,000 rpm MORI NLX 2500 Y|700 3 Axis

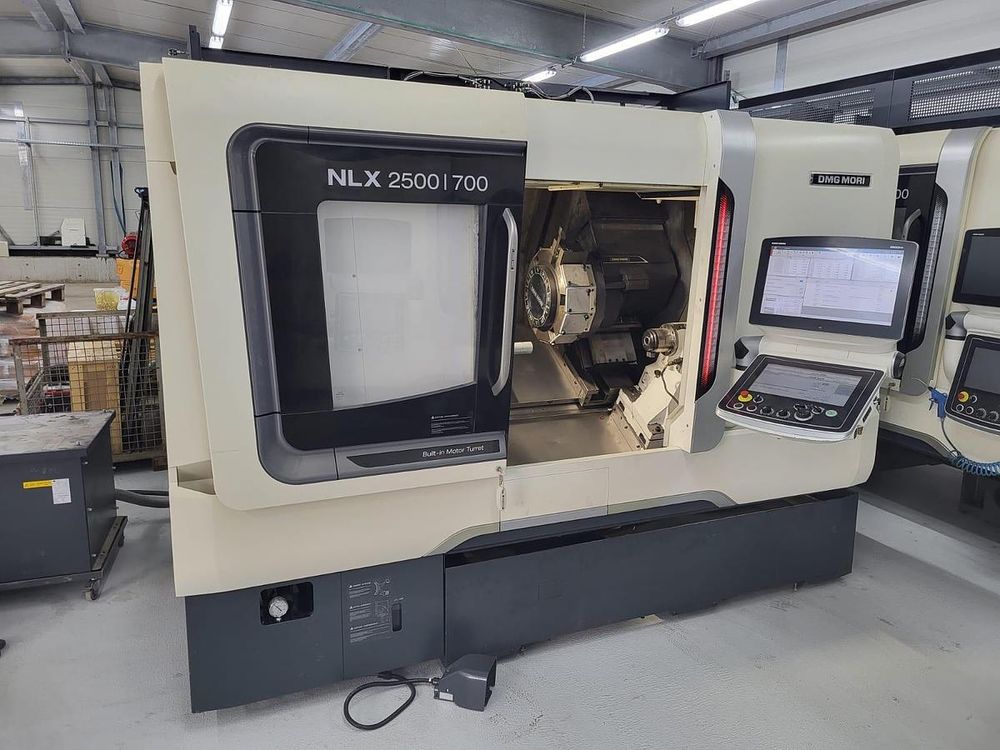

DMG MORI NLX 2500 Y|700
Year: 2016

Turning diameter 366 mm
Turning length 700 mm
Control system Celos Mitsubishi M730U
Swing over bed 920 mm
Swing over cross slide 742 mm
Max spindle speed 4,000 rpm
Main spindle drive power 18.5/18.5/15 kW
Max bar capacity 80 mm
Number of tool stations 12
Tool holder BMT 80
X-axis travel 260 mm
Z-axis travel 795 mm
Y-axis travel ±50 mm
Tailstock taper MT5
Machine weight approx. 4.7 t
Ball screws replaced on X, Y, and Z axes
New main spindle
Complete maintenance package included
Machine adjusted and calibrated
12-position turret with BMT 80
Driven tools max speed 10,000 rpm
Driven tools power 5.5/5.5/3.7 kW
Y-axis functionality
Projection length for driven tools 100 mm
Scraper-type chip conveyor
Coolant system with increased pressure 5 bar
Coolant shower at main spindle chuck
Compressed air blow-off system for cutting tools
Line filter for coolant system
Compressed air blow-off system for tailstock center
Mechanical interface for oil mist separator 150 mm
4-color signal light
EtherNET I/P interface for automation
