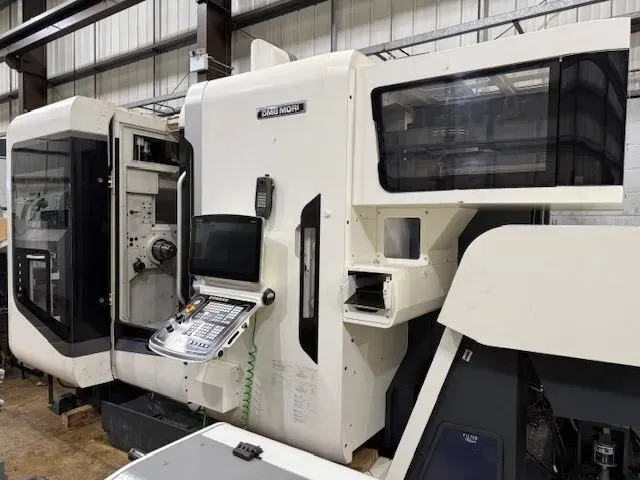

DMG CELOS Siemens 840D SL CNC 5,000 RPM MORI NTX 1000SZM 7 Axis

X1-Axis Travel: 15"
X2-Axis Travel: 6.1"
Y1-Axis Travel: 8.2"
Z1-Axis Travel: 24.2"
Z2-Axis Travel: 24"
B-Axis Head Travel: ±120°
B-Axis Head Indexing: 0.0001°
C-Axis Indexing 1: 0.0001°
C-Axis Indexing 2: 0.0001°
Rapid Traverse X1: 1574 IPM
Rapid Traverse X2: 787 IPM
Rapid Traverse Y1: 1574 IPM
Rapid Traverse Z1: 1968 IPM
Rapid Traverse Z2: 1417 IPM
Control: CELOS Siemens 840D SL CNC
Bar Capacity 1: 2.5"
Swing Over Bed: 17.7"
Turning Diameter: 16.9"
Turning Length: 31.4"
Distance Between Spindles: 41.3"
Spindle 1 Speed: 5,000 RPM
Spindle 1 Motor Power: 15 HP
Spindle Nose 1: A2-6
Spindle Bore Diameter 1: 2.9"
Chuck Size 1: 8"
Sub Spindle Speed: 6,000 RPM
Sub Spindle Motor Power: 10 HP
Spindle Nose 2: Flat
Spindle Bore Diameter 2: 1.9"
Bar Capacity 2: 1.5"
Chuck Size 2: 8"
Milling Spindle Taper: Capto C5
Milling Spindle Speed: 20,000 RPM
Milling Spindle Motor Power: 12 HP
Tool Capacity: 76
Tool Diameter: 2.7", 5.1"
Tool Length: 8.2"
Tool Weight: 11 lb
Turret Positions: 10
Machine Weight: 19,800 lb

CELOS Ergoline Siemens 840D SL CNC Color Control
In-Machine Tool Presetter for Tool Spindle
Chip Conveyor
Super High Pressure Coolant System Through B-Axis Interface
Ethernet I/P
Hydrafeed MSV Servo Driven Short Magazine Bar Feed Unit
Bar Feed Interface
Workpiece Unloader
Workpiece Ejector
Rotary Window
Hainbuch Spanntop Mini Pull Back 65 mm Collet Chuck
Coolant Gun
Air Blow for Chuck
Mist Collector Interface
Oil Skimmer
Oil Mist Separator
Renishaw RMP600 Part Probe with In-Machine Inspection Software
Renishaw Multi-Axis Inspection Software
Blum Z Pico Tool Breakage Detection
Technology Software Cycle 5-Axis Simultaneous Machining
Manual Pulse Generator
Multi Dry Filter
4-Color Signal Lamp
