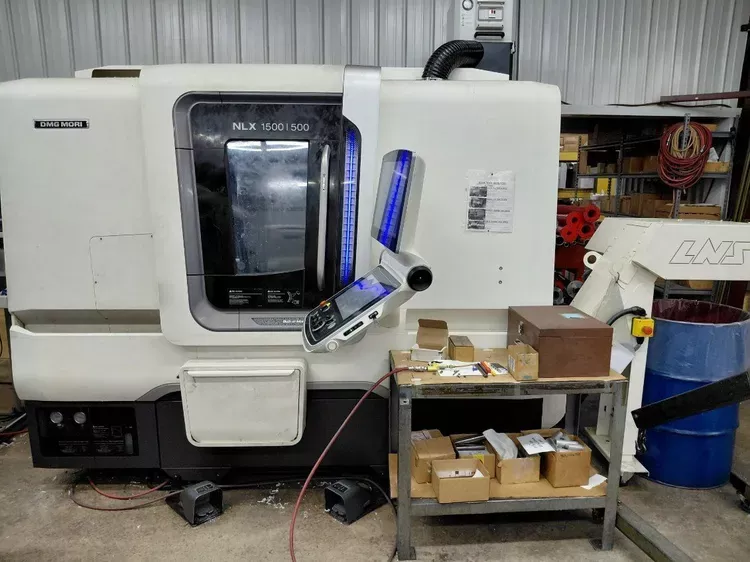

DMG CNC (CELOS ERGOLINE TOUCH COLOR CONTROL) 6,000 RPM MORI NLX-1500SY/500 5 Axis

Swing Over Bed 24.6"
Turning Diameter 14.4"
Turning Length 20.2"
Distance Between Spindles 24.6"
Chuck Size 1 6"
Chuck Size 2 5"
Spindle Nose 1 A2-5
Spindle Nose 2 A2-5
Spindle Bore Diameter 1 2.4"
Bar Capacity 1 2"
Spindle Speeds 1 6,000 RPM
Spindle Horsepower 1 20 hp
Spindle Bore Diameter 2 1.7"
Spindle Speeds 2 6,000 RPM
Spindle Horsepower 2 15 hp
X1 - Axis Travel 10.2"
Z1 - Axis Travel 23.2"
Y1 - Axis Travel 3.9"
C - Axis Indexing 1 0.00
C - Axis Indexing 2 0.00
W - Axis Travel Sub Spindle 24.6"
Rapid Traverse Rate - X1 1,181 ipm
Rapid Traverse Rate - Z1 1,181 ipm
Rapid Traverse Rate - Y1 393 ipm
Turret Tool Positions 1 12 Station
Turret Rotary Tool Speeds 1 10,000 RPM
Turret Rotary Tool Horsepower 1 7.5 hp
Machine Weight 11,880 lb

CELOS CNC Color Control with FNUC Background
6" 3 Jaw Thru Hole Hydraulic Chuck on Main
5" 3 Jaw Hydraulic Chuck on Sub
Auto Parts Catcher
Chip Conveyor
Auto Tool Presetter Main Spindle Removable Tool Setter Sub Spindle
BMT Style Turret for Rotary Tools
(2) Live Holders, 1 Axial 1 Radial
Full Compliment of Static Tool Holders
All Available Manuals
Very Low Hours
Edge Tech. Rebel V-65 Servo Short Magazine Bar Feed System
