DMG Control MSX-853 IV CNC 5000 RPM MORI CTX310 ECO 2 Axis

Ref : 2729302-3-GO

Condition : Used

Manufacturer : DMG

Controller : Control MSX-853 IV CNC

Spindle Speed : 5000 RPM

Model : MORI CTX310 ECO

Nb Of Axis : 2 Axis

Year(s) : 2010

Quantity : 1

Location : Seller or machines location:
OCEANIA

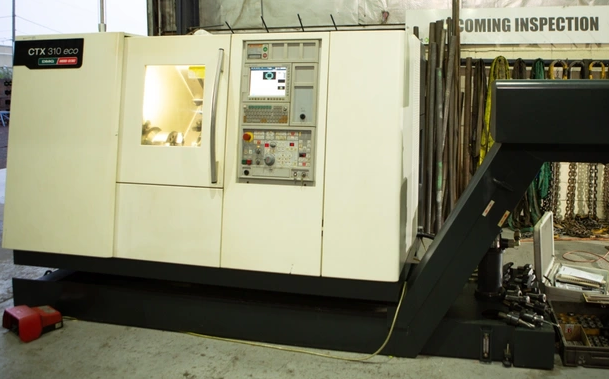

DMG MORI CTX310 ECO
Year: 2010

Swing 400.05 mm
Turning Diameter 199.9 mm
Machining Length 400.05 mm
Z-Axis Stroke 450 mm
X-Axis Stroke 160 mm
Max Turning Diameter 330 mm
Spindle Bore 51 mm
Spindle Speed Up to 5000 RPM
Spindle Power 15 kW
Chuck Size 210.06 mm
Bar Capacity 50.8 mm
Number of Axes 2
Control MSX-853 IV CNC
Tailstock Yes
Tailstock Taper 4MT
Tailstock Stroke 400 mm
Live Tooling No
Sub Spindle No
ATC / Revolver 12-position Sauter
Live Tooling Speed Up to 4500 RPM
Chip Conveyor Yes
Dimensions 4275 mm L x 1504 mm W x 1800 mm H
Weight 3200 kg

3-Jaw Chuck
Collet Chuck
Collets
Tool Holders
