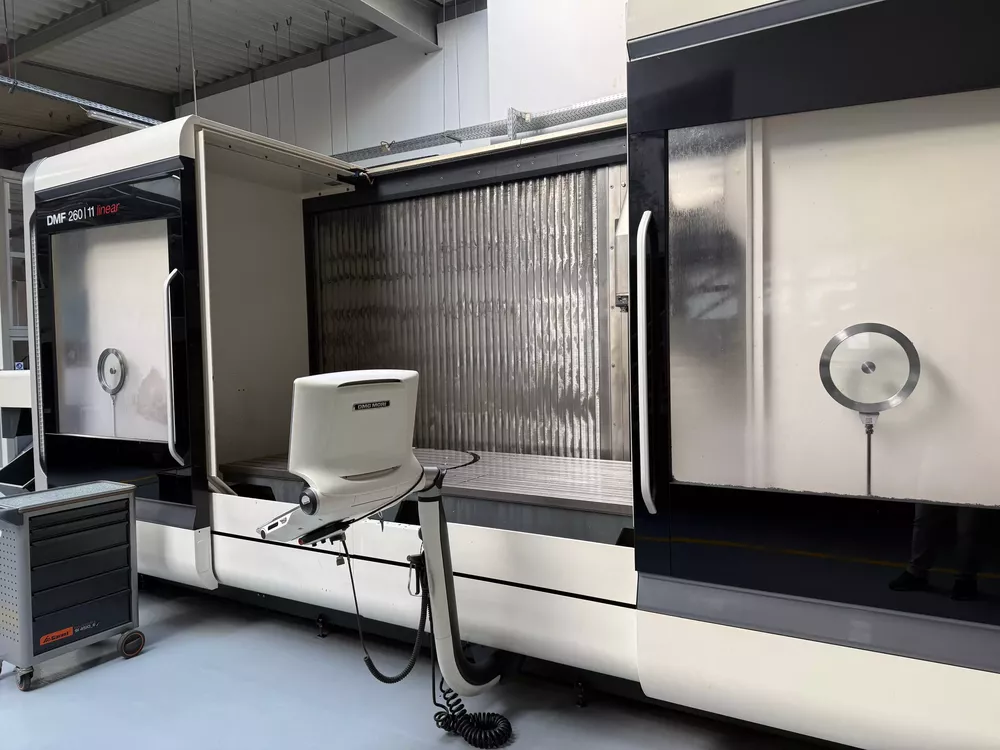

DMG DMF 260 / 11 5 Axis

Axes: 5
X-axis travel: 2600 mm
Y-axis travel: 1100 mm
Z-axis travel: 900 mm
Rapid traverse (X/Y/Z): 80 / 60 / 60 m/min
Table diameter: Ø 1050 mm (integrated NC rotary table)
Table size: 3200 x 1100 mm
Max. table load: 1200 kg
Spindle speed range: 20–15,000 rpm
Spindle power: 46 / 30 kW
Spindle torque: 200 / 130 Nm
Tool holder: SK 40
Tool magazine capacity: 60 tools
Tool diameter: 80 / 130 mm
Tool length: 300 mm
Tool weight: 6 kg
Control: Siemens 840 D Operate
Spindle hours: 9,189 h

Features / Equipment
Chip conveyor
Internal coolant (IKZ) 40 bar, 600 l
Chip rinsing gun
Minimum quantity lubrication
3D probe Heidenhain TS 649
3D Quickset
Electronic handwheel
Direct measuring system
DMG netservice software

Availability
Immediately available
