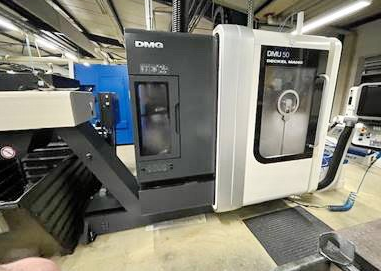

DMG DMG-MORI DMU 50 New Design 2010 3 Axis

DMG-MORI DMU 50 New Design 2010

Control: 840 D sl Siemens
X-Travel: 500 mm
Y-Travel: 450 mm
Z-Travel: 400 mm
Main Spindle Speed Range: 20 - 10,000 min⁻¹
Main Spindle Power: 13 / 9 kW
Max Torque: 130 / 87 Nm
Tool Taper: SK 40 DIN 69871
NC Rotary Table Surface Area: 630 x 500 mm
Max Table Load: 300 kg
Swivel Range: 115° (-110° / +5°)
Rotation Range: 360°
T-Slots: 7 x 14 x 63 mm
Tool Magazine Positions: 30
Max Tool Weight: 6 kg
Max Tool Diameter: 80 mm
Max Tool Diameter with Free Toolbox: 130 mm
Max Tool Length: 300 mm
Rapid Traverse X/Y/Z: 24 m/min
Feed Speeds X/Y/Z: 10,000 mm/min
Total Power Requirement: 32 kVA
Machine Weight: approx. 4.5 t
Machine Dimensions (LxWxH): 4.5 x 3.5 x 2.3 m
Chip Conveyor
Coolant System
Paper Band Filter
4-Color Signal Lamp
Test Probe TS 649
Through Spindle Coolant
Tool Setting TT 140
