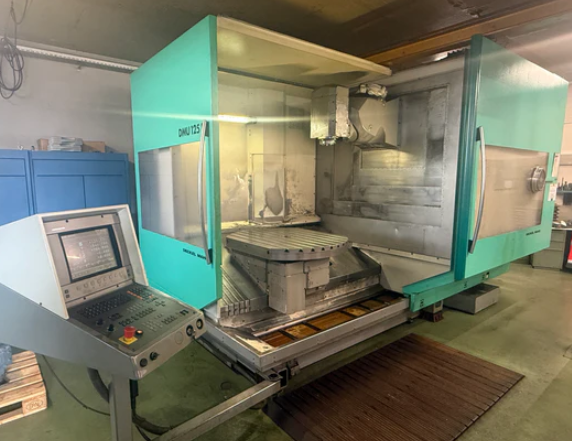

DMG DMU 125 P 4 Axis

X-Axis Travel: 1250 mm
Y-Axis Travel: 880 mm
Z-Axis Travel: 800 mm
Rapid Traverse: 24 m/min
B Axis
Control: Heidenhain TNC 430
Universal Head
High-Pressure Coolant: 40 bar
Heidenhain TS 631 Probe
Tool Break Control
Chip Conveyor
Electronic Handwheel
Oil Mist Extractor
Rinsing Gun
Circular Table Diameter: 1250 mm
Table Width: 1000 mm
Table Load Capacity: 2000 kg
Number of T-Slots: 9
T-Slot Spacing: 100 mm
T-Slot Width: 18 H7 mm
Table Speed: 8 t/min
Spindle Speed: 20–12000 RPM
Spindle Taper: SK40
Tool Changer: Double Gripper
Tool Magazine Capacity: 60 Tools
Feed Rate X-Axis: 0.02–10 m/min
Feed Rate Y-Axis: 0.02–10 m/min
Feed Rate Z-Axis: 0.02–10 m/min
Resolution: 1 μm
Input Resolution: 1 μm
Machine Dimensions: 4600 × 3480 × 3070 mm
Machine Weight: 12500 kg
Power-On Time: 53729 Hours
Operating Time: 51668 Hours
Working Time: 14565 Hours
