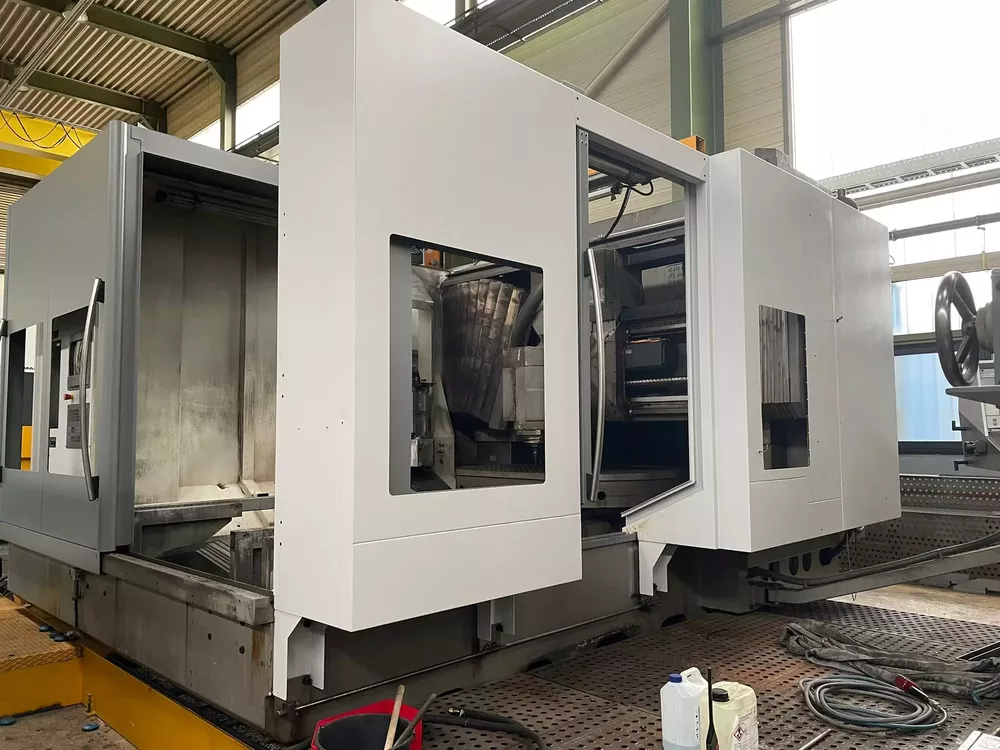

DMG DMU 200 P 5 Axis

X-axis travel 1800 mm
Y-axis travel 2000 mm
Z-axis travel 1100 mm
Rapid traverse (X/Y/Z) 60 / 40 / 40 m/min
C-axis 360°
Swivel head H/V
B-axis 0 or 90°
Controlled axes 4.5
Control Heidenhain TNC 426 PB
Spindle speed range 8000 rpm
Spindle power 30 / 20 kW
Spindle torque 285 Nm
Spindle taper SK 50
Tool changer 60 positions
Max. tool diameter 230 mm
Max. tool length 450 mm
Max. tool weight 20 kg
Table size 1700 x 1400 mm
Max. table load 5000 kg
Machine weight 33000 kg

Chip conveyor
Electronic handwheel
Probe Heidenhain TS 631
Internal coolant supply
