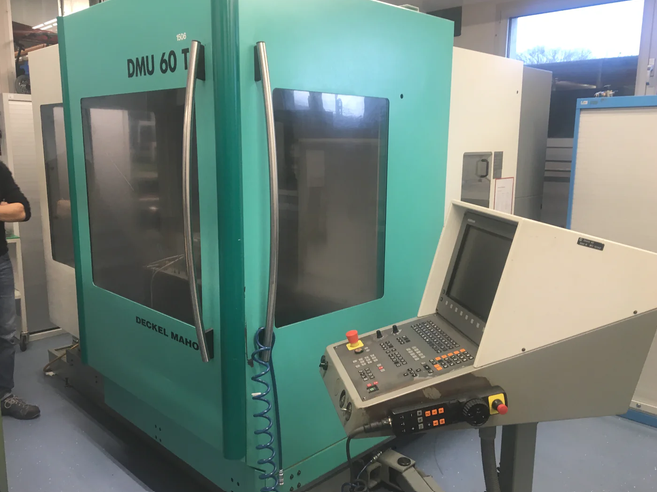

DMG DMU 60 T 3 Axis

X-Axis Travel: 600 mm
Y-Axis Travel: 525 mm
Z-Axis Travel: 500 mm
Feedrate: 20–10,000 mm/min
Rapid Traverse X/Y/Z: 18 m/min
Control: Heidenhain TNC 430
Table Size: 900 × 543 mm
Table Load Capacity: 350 kg
Spindle Taper: SK40
Spindle Speed: 20–12,000 RPM
Spindle Motor: 7.5 kW
Tool Magazine Capacity: 25 Stations
Maximum Tool Diameter: 80 mm
Maximum Tool Diameter (Adjacent Pocket Empty): 160 mm
Maximum Tool Length: 315 mm
Maximum Tool Weight: 8 kg
Quill Travel: 90 mm
Resolution: 0.001 mm
Air Supply: 5.5–8.0 bar
Power Supply: 3 × 400 V, 50 Hz
Machine Weight: Approx. 4,100 kg
Machine Dimensions: 2,900 × 2,000 × 2,300 mm

**Features / Equipment**
Full Splash Enclosure
Coolant System
Electronic Handheld Control
Work Lamp
RS-232 Interface
Central Lubrication System
