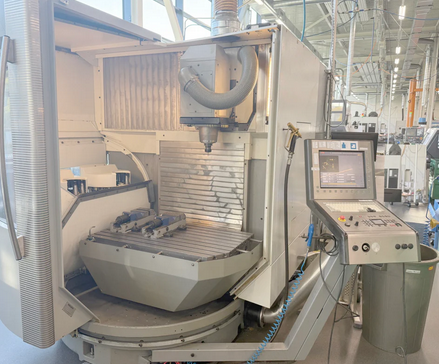

DMG DMU 60 T 5 Axis

Number of axis total 3
Table length 1000 mm
Table width 600 mm
Number of T-channels 9
Distance of the T-slots 63 mm
T-channel width 14H7 mm
Table load max. 400 kg
Longitudinal travel (X-axis) 630 mm
Transversal travel (Y-axis) 560 mm
Vertical travel (Z-axis) 560 mm
Tool changer number of tools 20
Tool diameter 80 mm
Diameter with free adjacent pockets 130 mm
Tool length 315 mm
Max. tool weight 8 kg
Spindle nose SK40 DIN 69871
Spindle speed 20–12,000 rpm
Feed range 20–10,000 mm/min
Rapid traverse X 26 m/min
Rapid traverse Y 26 m/min
Rapid traverse Z 20 m/min
Vertical quill travel 90 mm
Voltage 400 V
Spindle motor 7.5 kW
Machine weight 6500 kg
Overall machine length 2880 mm
Overall machine width 2135 mm
Overall machine height 2827 mm
Set of toolholders
Coolant system
Lamp
