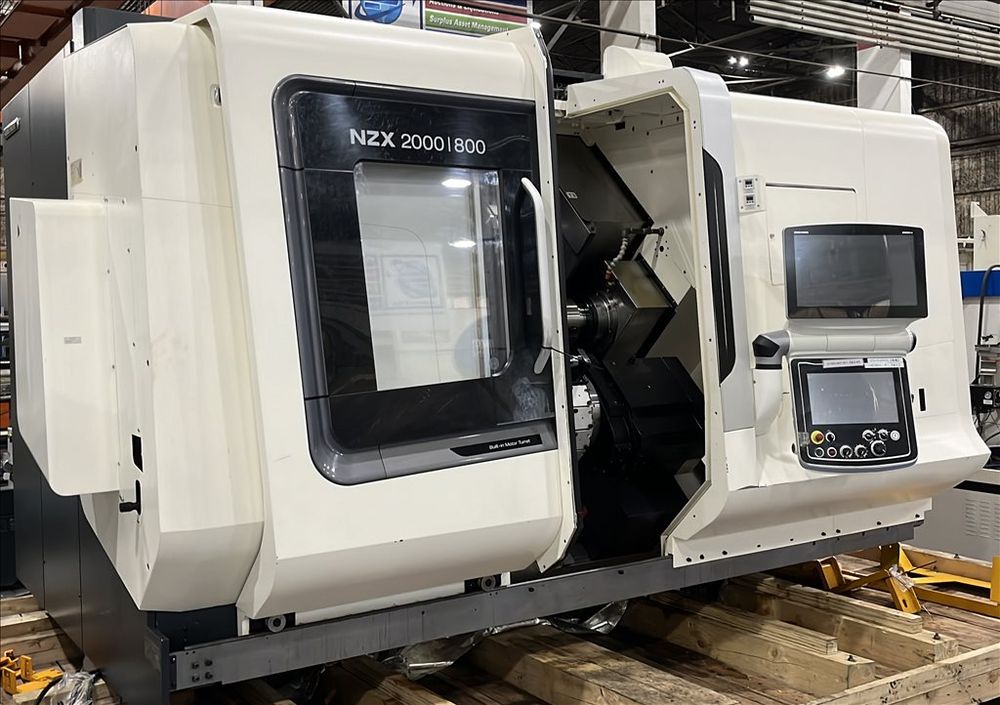

DMG Fanuc 31iB CELOS-ERGOline Touch CNC control 5,000 RPM MORI NZX2000/800STY3 10 Axis

X1, X2, X3 travel 8.2″
Y1, Y2, Y3 travel 4.3″
Z1, Z3 travel 11.8″
Z2 travel 31.8″
B-axis travel 34.2″
Min. spindle indexing increment 0.001°

Fanuc 31iB CELOS-ERGOline Touch CNC control
Chip conveyor
(2) Tool presetters
(2) Additional chucks

Swing over bed 31.5″
Swing over cross slide 31.5″
Max distance between spindle large noses 44.4″
Max turning diameter 12.5″
Standard turning diameter 7.9″
Max workpiece delivery diameter 11.8″
Max turning length 31.8″
Bar capacity 2.5″

Through spindle hole diameter 2.9″
Spindle bearing inner diameter 4.7″
Max spindle speed 5,000 RPM
Spindle motor (1 & 2) 30 HP

Max rotary tool spindle speed 6,000 RPM

Rapid traverse (X1, X2, X3) 1181.1 IPM
Rapid traverse (Y1, Y2) 787.4 IPM
Rapid traverse (Z1, Z2, Z3) 1968.5 IPM

Chuck size (Spindle 1 & 2) 8″

Power on time 20,107 hours
Cutting time 11,207 hours
