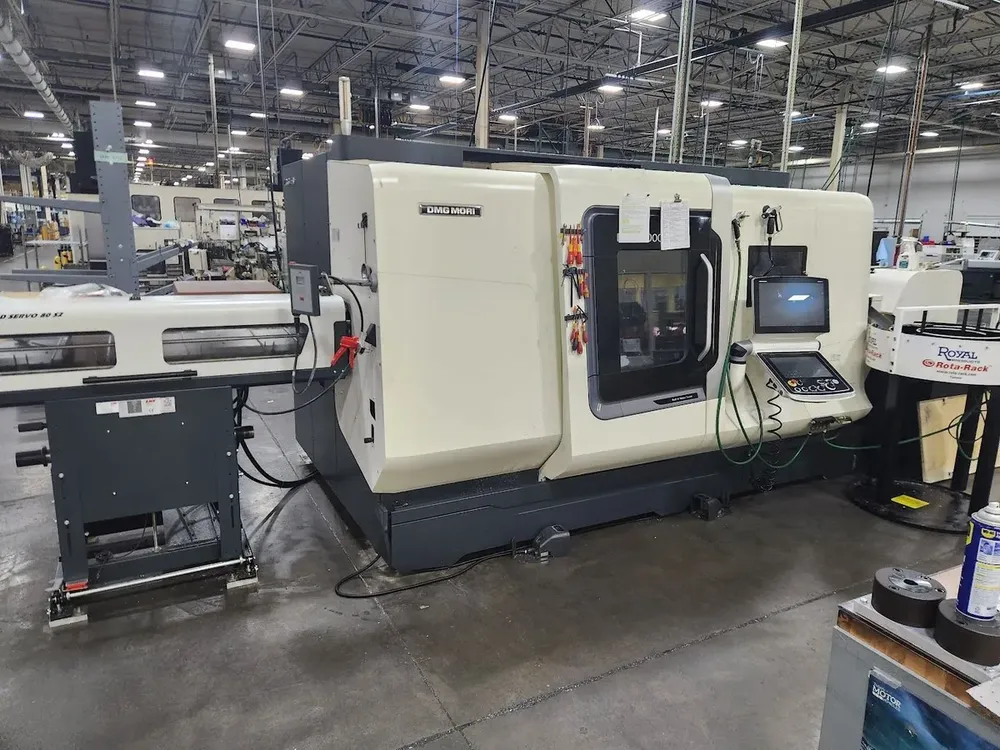

DMG FANUC 31IB CNC Color Control with CELOS 5,000 RPM MORI NZX 2000 T3Y3 12 Axis

Rapid Traverse Rate X1: 1181 IPM
Rapid Traverse Rate X2: 1181 IPM
Rapid Traverse Rate X3: 1181 IPM
Rapid Traverse Rate Z1: 1968 IPM
Rapid Traverse Rate Z2: 1968 IPM
Rapid Traverse Rate Z3: 1968 IPM
Rapid Traverse Rate Y1: 787 IPM
Rapid Traverse Rate Y2: 787 IPM
Rapid Traverse Rate Y3: 787 IPM
X1 Axis Travel: 8.3"
X2 Axis Travel: 8.3"
X3 Axis Travel: 8.3"
Z1 Axis Travel: 11.8"
Z2 Axis Travel: 31.9"
Z3 Axis Travel: 3.9"
Y1 Axis Travel: 4.3"
Y2 Axis Travel: 4.3"
Y3 Axis Travel: 4.3"
W Axis Travel Sub Spindle: 34.3"

C Axis Indexing 1: 0.00°
C Axis Indexing 2: 0.00°

FANUC 31IB CNC Color Control with CELOS
MAPPS IV Conversational Programming
Program Restart / Inverse Time Feed
Auto Power Off
Coolant Thru Spindles
Chip Conveyor
Tool Presetters (L/R)
LNS Quick Load Servo Short Magazine Barfeed
Chip Blaster 3 Tier High Pressure Coolant System: 1000 PSI
In Machine Traveling Type Workpiece Unloader
Ball Screw Core Cooling
Full Complement of Rotary and Static Holders

Swing Over Bed: 31.5"
Turning Diameter: 12.5"
Turning Length: 31.8"
Distance Between Spindles: 44.4"
Bar Capacity 1: 2.4"
Bar Capacity 2: 2.4"

Spindle Nose 1: A2-6
Spindle Bore Diameter 1: 2.8"
Spindle Speed 1: 5,000 RPM
Spindle Horsepower 1: 33.3 HP
Spindle Nose 2: A2-6
Spindle Bore Diameter 2: 2.8"
Spindle Speed 2: 5,000 RPM
Spindle Horsepower 2: 33.3 HP

Turret Rotary Tool Speed 1: 6,000 RPM
Turret Rotary Tool Horsepower 1: 10 HP
Turret Rotary Tool Speed 2: 6,000 RPM
Turret Rotary Tool Horsepower 2: 10 HP
Turret Rotary Tool Speed 3: 6,000 RPM
Turret Rotary Tool Horsepower 3: 10 HP

Chuck Size 2: 8"
Turret Tool Positions 1: 16 Station
Turret Tool Positions 2: 16
Turret Tool Positions 3: 16
(2) 8" 3 Jaw Hydraulic Chucks
(1) Collet Nose Main Spindle

Machine Weight: 22,000 lbs
