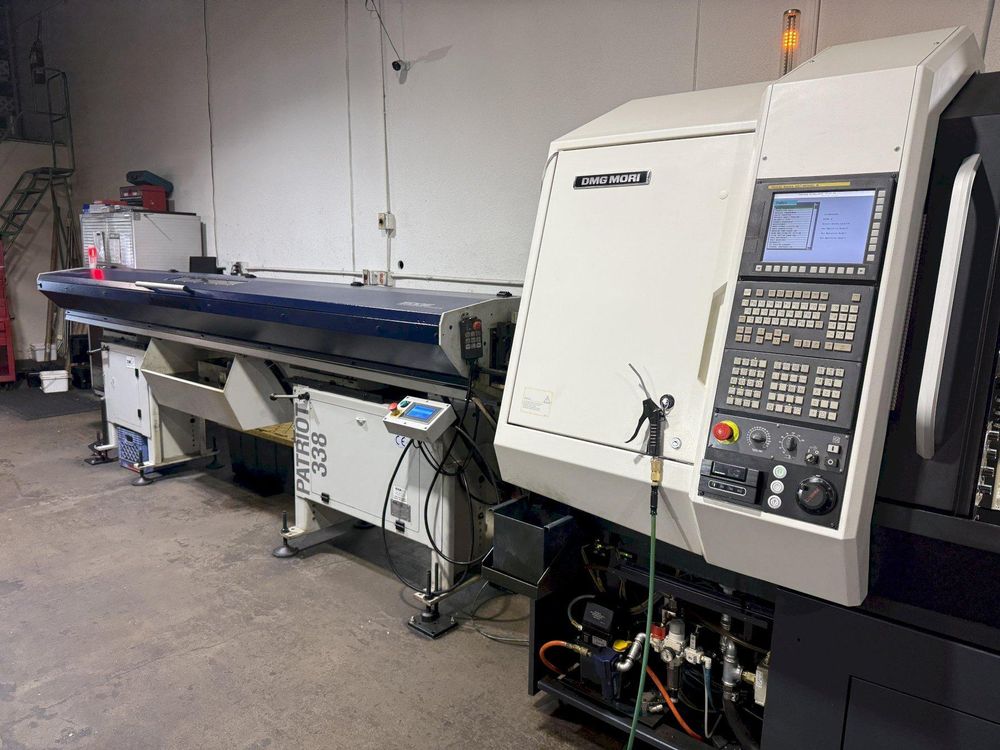

DMG FANUC 32i-B Plus 8500 rpm MORI SPRINT 32/8 8 Axis

DMG MORI SPRINT 32/8
2018

Number of axes 8
Number of linear axes 6
Number of C-axes 2
Number of spindles 2
Number of channels 2
Control system FANUC 32i-B Plus
Control display 10.4" color
Main spindle maximum bar capacity 32 mm
Main spindle speed 8500 rpm
Main spindle power (S2 30 min/S1) 7.5/5.5 kW
Main spindle torque (S2 30 min/S1) 51.9/40.4 Nm
Counter spindle maximum bar capacity 32 mm
Counter spindle speed 8500 rpm
Counter spindle power (S2 30 min/S1) 3.7/2.2 kW
Counter spindle torque (S2 30 min/S1) 23.6/14 Nm
C-axis resolution 0.001°
Z1 travel 100 mm
Rapid traverse speed X1, Z1, X2, Z2/Y1, Y2 40/30 m/min
Rapid traverse speed X1, Z1, X2, Z2/Y1, Y2 131/98 in/min
Acceleration in linear axes 5 m/s²
Fixed turning tools 6
Tools for front machining 4
Tools for back-working 4
Driven tools on slide 1 2
Driven tools on slide 2 2
Driven tool speed 6000 rpm
Driven tool power (S3 40% / S1) 1.9/1 kW
Driven tool torque (S3 40% / S1) 3 Nm
Tool monitoring system with graphical load display
High-pressure coolant system
Integrated air handler
Compact footprint 30.1 ft²
Machine weight 7826 lbs
Supports simultaneous machining with 2 tools
Advanced back-working capability
Precision machining for small complex parts
