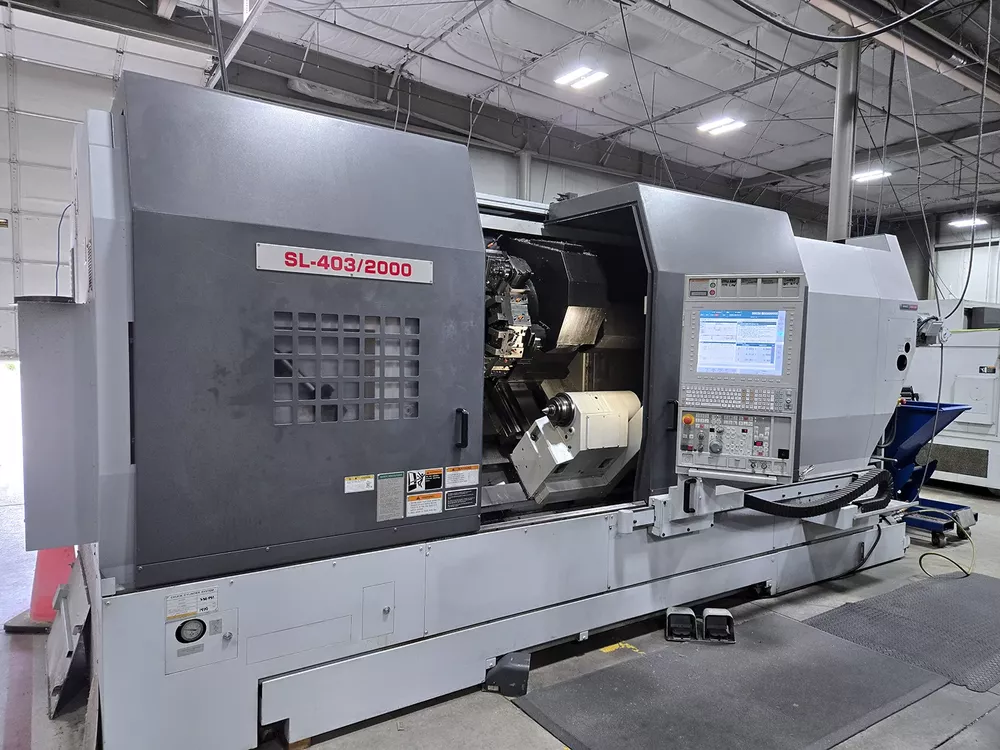

DMG Fanuc 32iB 2,400 rpm MORI SL403BMC/2000 2 Axis

X-axis travel: 14.7 in
Z-axis travel: 82.7 in
Minimum spindle indexing angle: 0.001°
Control: Fanuc 32iB
MAPPS 4 interface
In-machine tool presetter
Tool life management
High-pressure coolant 635 W / 1040 W
Spindle override for threading
Programmable Z-axis travel tailstock
MAPPS monitoring adapter
User memory 6 GB
Part storage 32 Kbyte 8QM
Swing over bed: 36.8 in
Swing over cross slide: 29.1 in
Distance between centers: 91.5 in
Maximum turning diameter: 24.0 in
Maximum turning length: 84.9 in
Maximum spindle speed: 2,400 rpm
Number of spindle speed ranges: 2
Spindle nose: JIS-A2-11
Through-spindle bore diameter: 5.1 in
Number of tool stations: 12
Square tool shank size: 1-1/4 in
Boring bar shank diameter: 2-1/2 in
Live tooling
24 in Kitagawa 3-jaw hydraulic chuck
Live tool holders: 5
Static turning holders: 3
Boring bar holders: 3
Chip conveyor
Coolant tank
Coolant pumps
