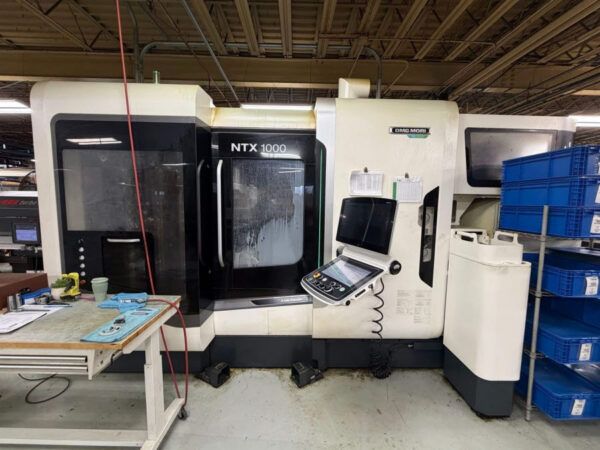

DMG Fanuc F31iB5 control system 20,000 rpm MORI NTX-1000SZM 2 Axis

X Axis Direction
CELOS-ERGOline Touch interface
Left spindle through-spindle hole diameter 73 mm
Left spindle speed 5,000 rpm
Right spindle motor power 11/7.5 kW
Right spindle speed 6,000 rpm
Left spindle chuck 8 inch hollow chuck
Left spindle cylinder set for bar work capacity diameter 65 mm
Right spindle chuck 6 inch hollow chuck
Right spindle cylinder set for bar work capacity diameter 52 mm
High-speed turn-mill spindle 20,000 rpm
Turn-mill spindle power 9/5.5 kW
Turn-mill spindle torque 49.4 Nm
Capto C5 tool interface
Tool spindle indexing system
Lower turret 10 station bolt-tightened turret
Milling spindle speed 10,000 rpm
Milling spindle power 1.5/1.2 kW
Magazine tool capacity 76 tools
Coolant type water soluble coolant
Chip conveyor right discharge hinge type drum filter
High-pressure coolant interface 7.0 MPa
Coolant system dual path support
Coolant gun included
Air blow left spindle
Air blow right spindle
Mist collector interface (duct 200 mm)
In-machine tool presetter manual removable type
Workpiece measuring system RENISHAW RMP600
Signal lamp 4 colors
Workpiece unloader right spindle system
Workpiece unloading conveyor
Workpiece stocker
Bar feeder interface EtherNet/IP
Right spindle ejector option
EtherNet/IP interface
3D quickSET function
Tailstock for turret
Keyway broaching option
Optional block skip function
Voltage 220 V
Frequency 60 Hz
Unit inch setting
Automatic parts ejector
Parts unloader system
Parts stacker system
FMB TURBO bar feeder
20,000 rpm milling spindle
