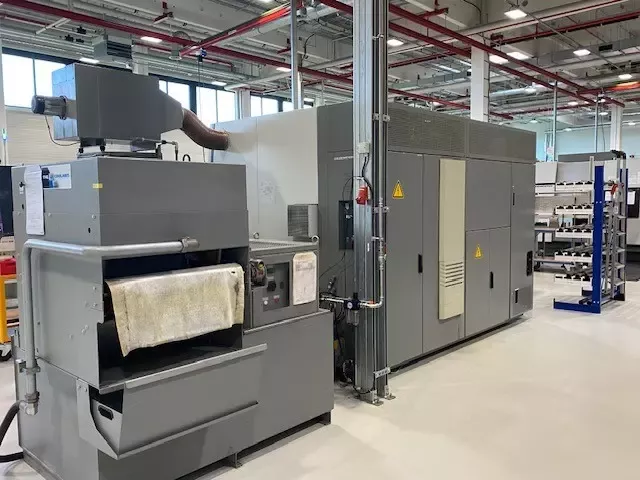

DMG, Gildemeister CNC control Siemens 840 D 5000 rpm TWIN 65 RG2 3 Axis

X axis travel 300 / 180 / 175 mm
Y axis travel ±40 mm
Z axis travel 650 / 650 / 670 mm
Rapid traverse (X/Y/Z) 30 / 15 / 30 m/min

Turning length 650 mm
Turning diameter 250 mm
Max swing over bed 340 mm
Bar capacity 65 mm

Main spindle speed 20–5000 rpm
Main spindle power 35 kW
Main spindle torque 370 Nm

Counter spindle speed 20–5000 rpm
Counter spindle power 35 kW
Counter spindle torque 370 Nm
Counter spindle bar capacity 65 mm

Tailstock quill MK4
Tailstock quill stroke 300 mm

Driven tool speed 4000 rpm
Driven tool torque 28 Nm

Number of turrets 2
Tool holder VDI 40
Tool positions 12 + 12

Chip conveyor
Internal coolant pressure 8–20 bar
Coolant system
Bar loader Irco magazine ILS RBK 1200 mm

Machine weight 10000 kg
Machine dimensions (LxWxH) 7.00 x 4.70 x 2.50 m
