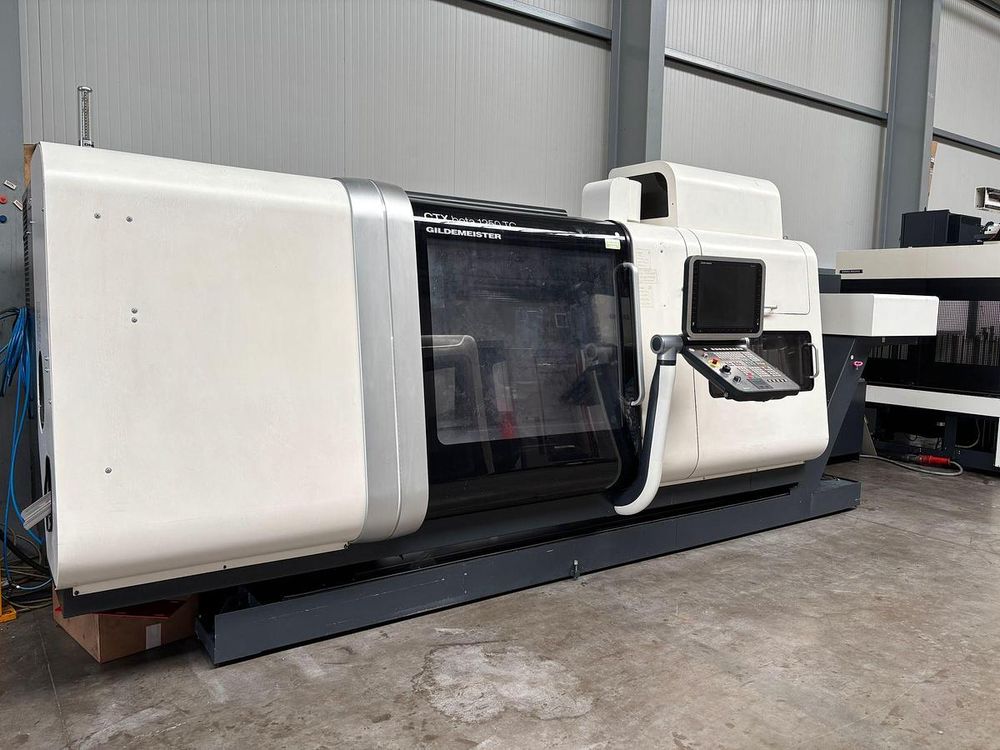

DMG, Gildemeister Control Siemens 840D solution line 5000 rpm CTX beta 1250 TC 5 Axis

X-axis travel 450 mm
Y-axis travel ±100 mm
Z-axis travel 1300 mm
B-axis travel ±110°
C-axis travel 360°

Control Siemens 840D solution line
Swing diameter 500 mm
Turning length 1250 mm

Main spindle speed range 20–4000 rpm
Main spindle power (100/40% ED) 35 / 45 kW
Main spindle torque (100/40% ED) 600 / 770 Nm
Counter spindle speed range 0–5000 rpm
Counter spindle power 25 / 32 kW
Counter spindle torque (100/40% ED) 280 / 360 Nm
Spindle flange diameter 170h5 mm
Spindle bore 87 mm
Spindle diameter in front bearing 130 mm
Milling speed 12000 rpm

Number of tool stations 48 positions
Tool holder Capto C6
Max. tool length 300 mm
Max. tool diameter 80 mm
Max. tool weight 8 kg

Total power requirement 65 kVA
Machine weight 8000 kg
Bar machining package
High-pressure coolant system 8/20/80 bar
In-process measuring system Renishaw
Chip conveyor
Coolant tank 980 L

Milling spindle renewed
On-time hours 74500 h
Spindle hours 28350 h
