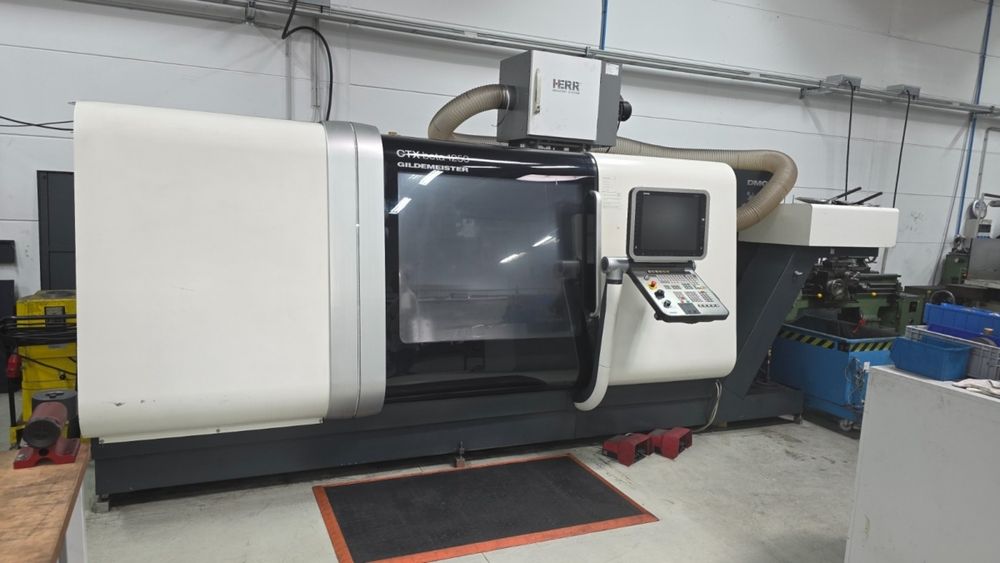

DMG, Gildemeister Siemens 840 D ShopTurn 4000 rpm CTX Beta 1250 3 Axis

X Travel: 300 mm
Z Travel: 1300 mm
C-Axis Indexing: 360000°
Rapid Feed X/Z: 30000 mm/min
Control: Siemens 840 D ShopTurn
Tool Eye
Turning Diameter: 410 mm
Turning Length: 1250 mm
Max. Swing Diameter: 700 mm
Clamping Length: 1425 mm
Spindle Bore: 95 mm
Main Spindle Speed: 4000 rpm
Main Spindle Power: 35 kW
Main Spindle Power 40% ED: 45 kW
Max. Torque Main Spindle: 600 Nm
C-Axis Speed: 200 min-1
C-Axis Torque: 770 Nm
Driven Tool Speed: 4000 rpm
Driven Tool Power at 2000 rpm: 12 kW
Max. Torque Driven Tools: 36 Nm
Feed Force X: 4.5 kN
Feed Force Z: 7.5 kN
Turret Positions VDI 40: 12
Driven Tool Positions: 12
Tailstock Cone: MK 5
Tailstock Travel: 1200 mm
Tailstock Rapid Traverse: 4 m/min
Hydraulic Lunette Clamping Range: 20 – 165 mm
Hydraulic Lunette Pressure: 60 bar
Chip Conveyor
Oil Mist Extraction System
Hydraulic Lunette SMW Autoblock Type SLU-3 1-ZS
Tool Board with Tool Holder Package
Rigid and Driven Tools Included
Several Jaws for 3-Jaw Chuck Forkardt KS 315
Machine Documentation
Spindle Hours: 3956 h
Machine Under Power: 14440 h
Total Power Requirement: 60 kVA
Machine Weight: 7650 kg
Machine Dimensions: 5400 x 2600 x 2100 mm
