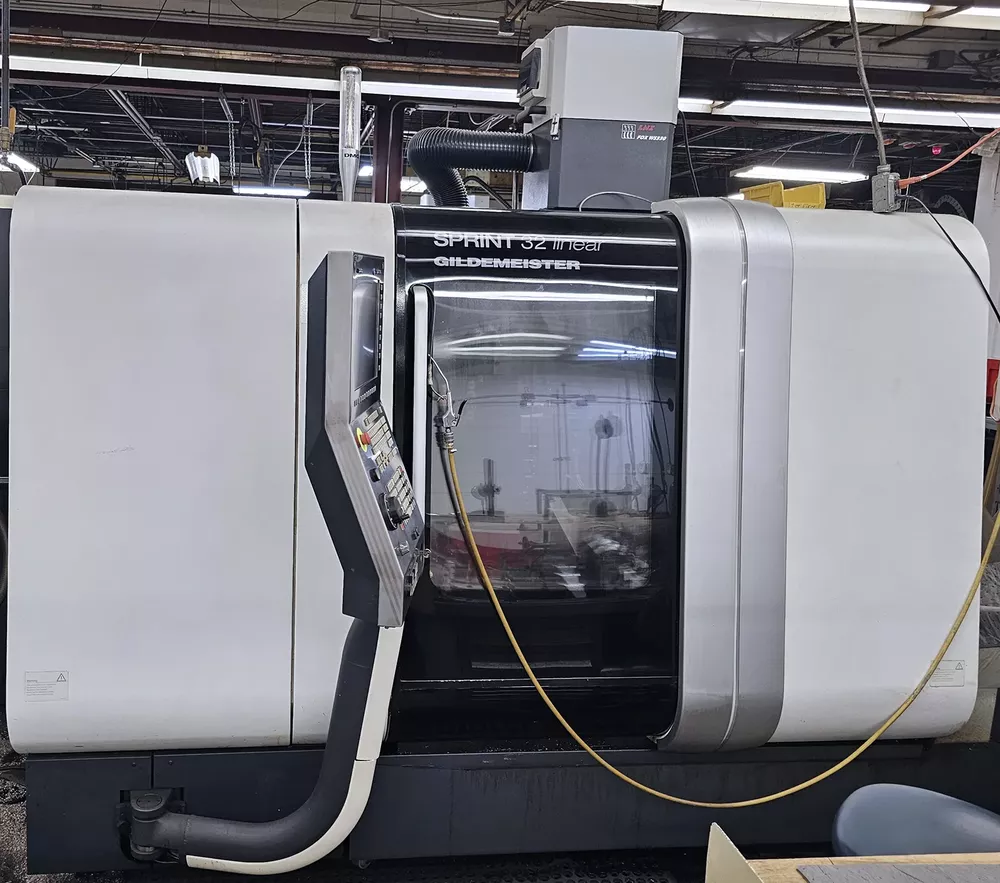

DMG, Gildemeister Sprint 32/8 Linear 3 Axis

X1 stroke: 65 mm
X1 rapid traverse: 30 m/min
X1 acceleration: 10 m/s²
Z1 stroke: 120 mm
Z1 rapid traverse: 30 m/min
Control: Fanuc 310
Max bar diameter main spindle: 33 (36) mm
Max spindle speed main spindle: 8,000 RPM
Spindle nominal power main spindle: S1 5.5 kW
Max bar diameter counter spindle: 38 mm
Max spindle speed counter spindle: 8,000 RPM
Spindle nominal power counter spindle: S1 5.5 kW

Equipment
Imeca Mini Boss 332 barloader
Fanuc 310 control
Chip conveyor
Y-axis available on main and sub spindle
Collet application for main spindle
Collet application for counter spindle
6-position 16x16 tool holder for slide 1
4 driven tools on slide 1 with junction ESX20
C-axis for main spindle
C-axis for counter spindle
Drive for rotating tools slide 2
4 driven tools on slide 1 with junction ESX20
4-position tool holder diameter 32 mm for slide 2
Pneumatic ejector and unloading system with belt
Pneumatic cleaning system for counter spindle collet
Mechanical preparation for oil mist filter
Electrical preparation for bar loader
Software preparation for bar loader
