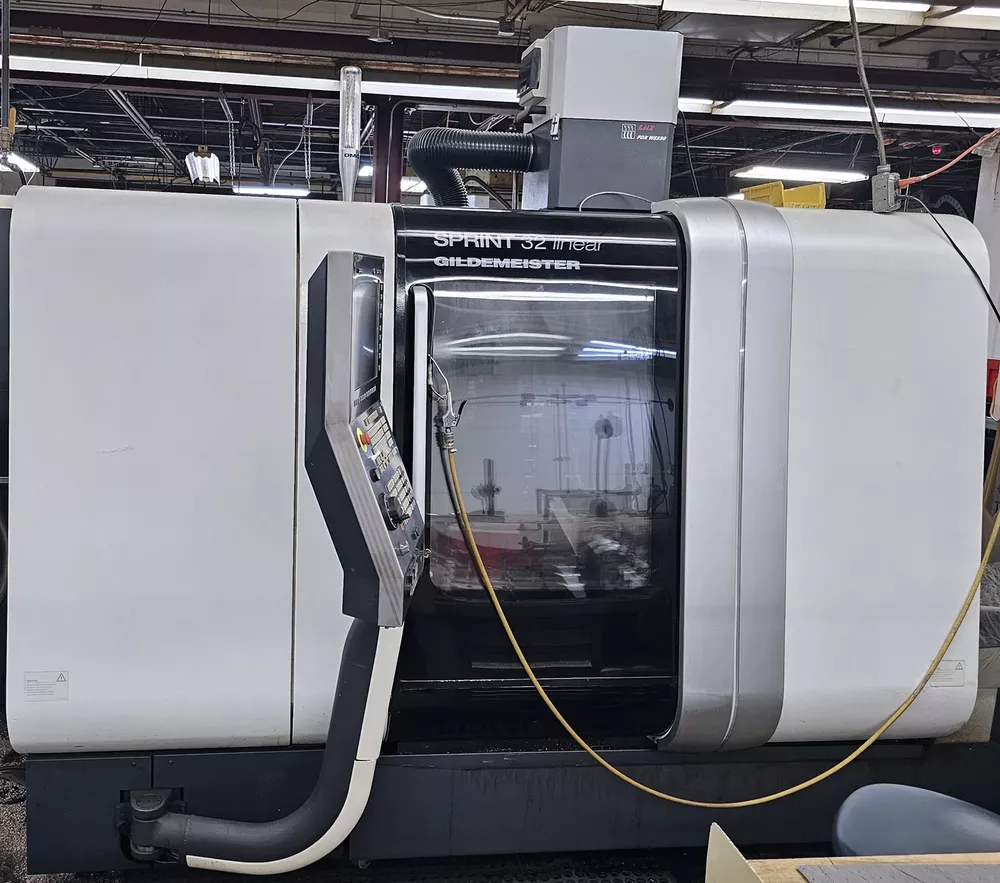

DMG, Gildemeister Sprint 32/8 Linear 3 Axis

X1 stroke 65 mm
X1 rapid traverse 30 m/min
X1 acceleration 10 m/s²
Z1 stroke 120 mm
Z1 rapid traverse 30 m/min

Fanuc 310 control

Max bar diameter 33 (36) mm
Max spindle speed 8,000 rpm
Spindle nominal power S1 5.5 kW
Counter spindle max bar diameter 38 mm
Counter spindle max speed 8,000 rpm
Counter spindle nominal power S1 5.5 kW

C axis for main spindle
C axis for counter spindle

Imeca Mini Boss 332 barloader
Chip conveyor
Y axis on main spindle
Y axis on counter spindle
Collet for main spindle
Collet for counter spindle
6-position 16x16 tool holder for slide 1
4 driven tools on slide 1 with junction ESX20
Drive for rotating tools slide 2
4 driven tools on slide 1 with junction ESX20
4-position tool holder Ø32 mm for slide 2
Pneumatic ejector and unloading system with belt
Pneumatic cleaning system for counter spindle collet
Mechanical preparation for oil mist filter
Electrical and software preparation for bar loader
