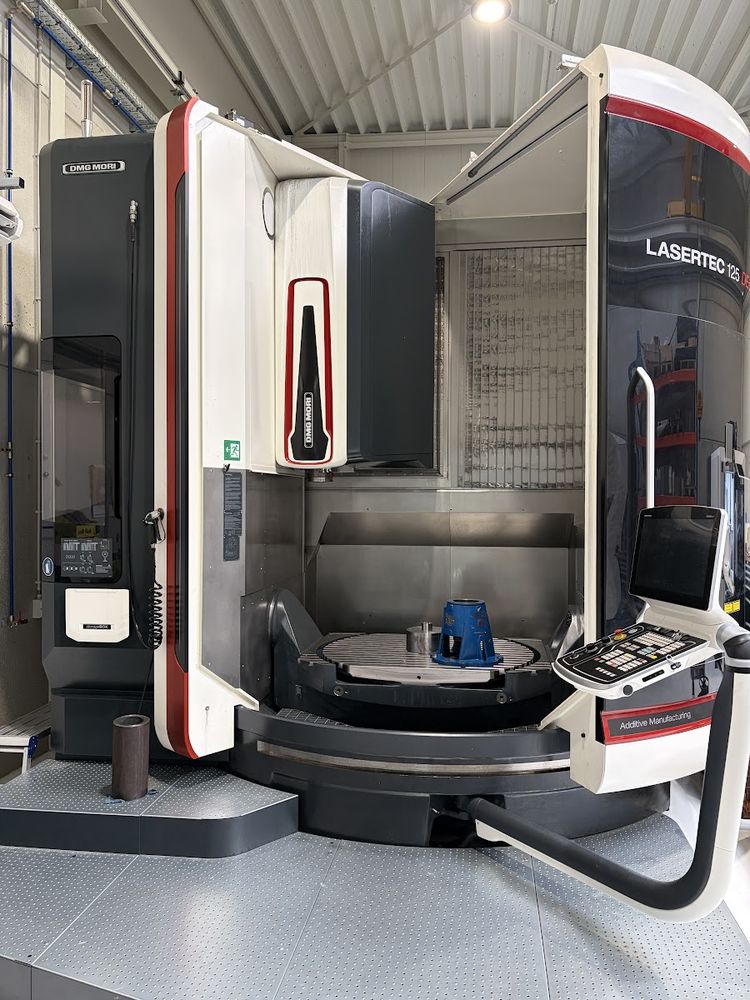

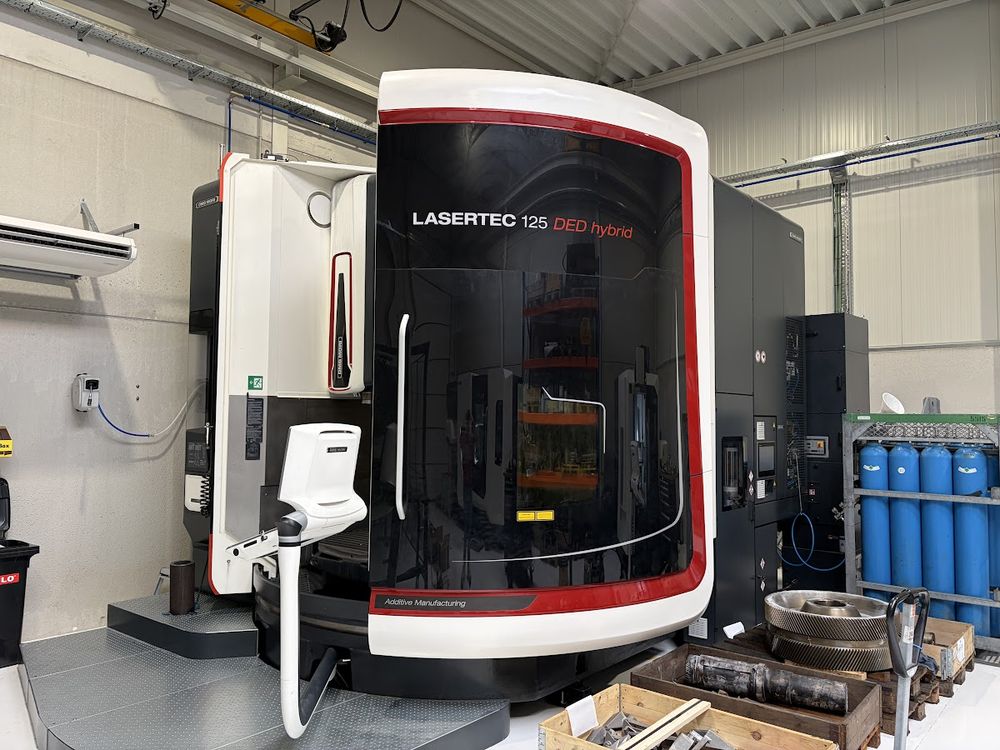

DMG LASERTEC 125 DED hybrid

Year: 2024

Control system Siemens Sinumerik 840D Sl
Clamping area of table 1400 x 1000 mm
Travel X-axis 1335 mm
Travel Y-axis 1250 mm
Travel Z-axis 900 mm
Spindle speed 0 - 20000 /min.
Number of driven axes
Cooling through spindle YES
Pressure of cooling 40 bar
Spindle taper HSK A 63 .
Axis A +120° -120° °
Axis C 360 °
Max. load of table 2000 kg
Tool magazine YES
Number of positions in magazine 60

Rapid traverse (X, Y, Z): 40 m/min

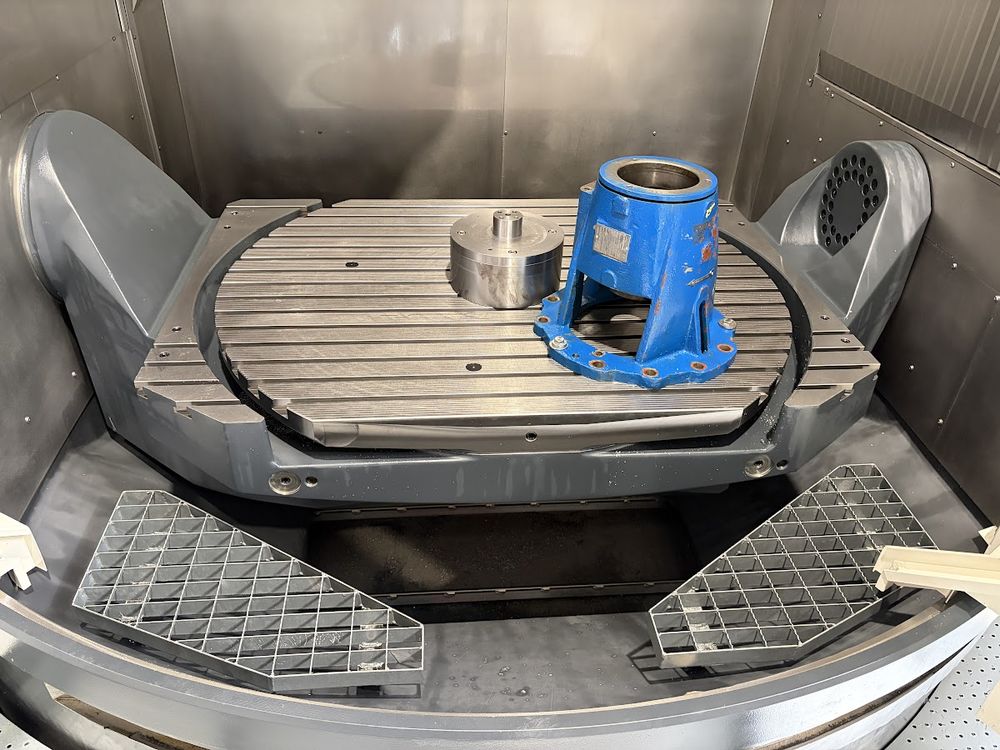

Table type: NC swivel rotary table
Table clamping surface: 1400 mm x 1000 mm (integrated C-axis with a table plate of 1250 x 1000 mm)
Swivel range (A-axis): +120° to -120°
Rotation range (C-axis): 360°
Max. workpiece dimensions: Machinable diameter 1250 mm, height 790 mm

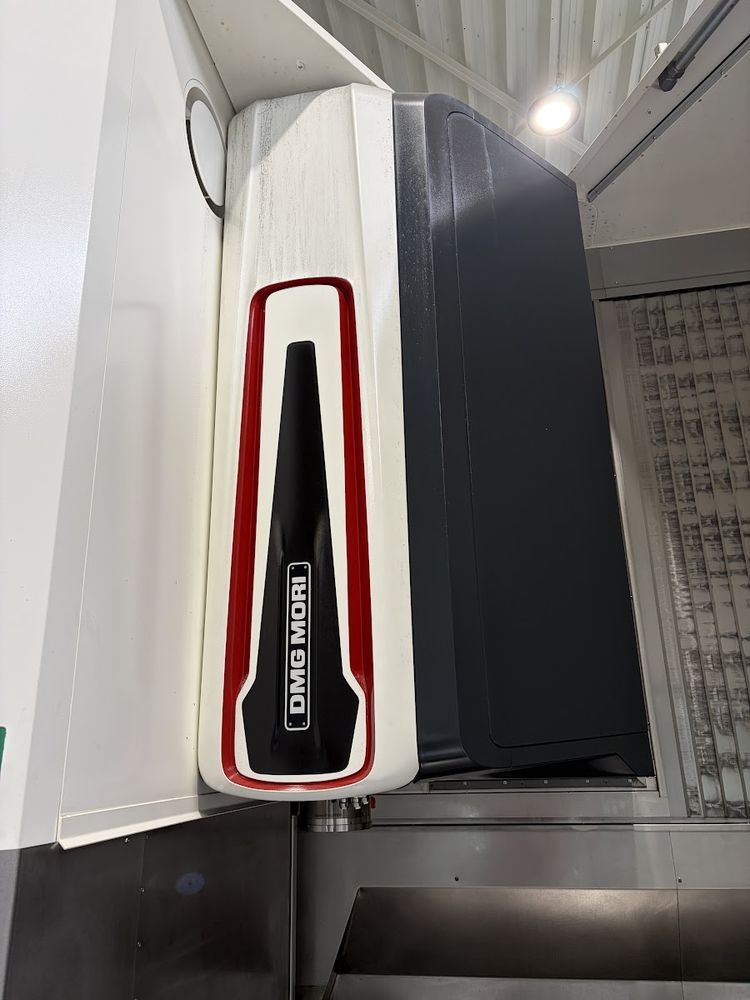

Spindle type: Motor spindle speedMASTER with HSK-A 63 taper (nebo interface)
Speed: Max. 20,000 rpm (this is an optional feature selected in this quote, standard is 15,000 rpm)
Output / Power: 35 kW (at 40% duty cycle) / 25 kW (at 100% duty cycle)

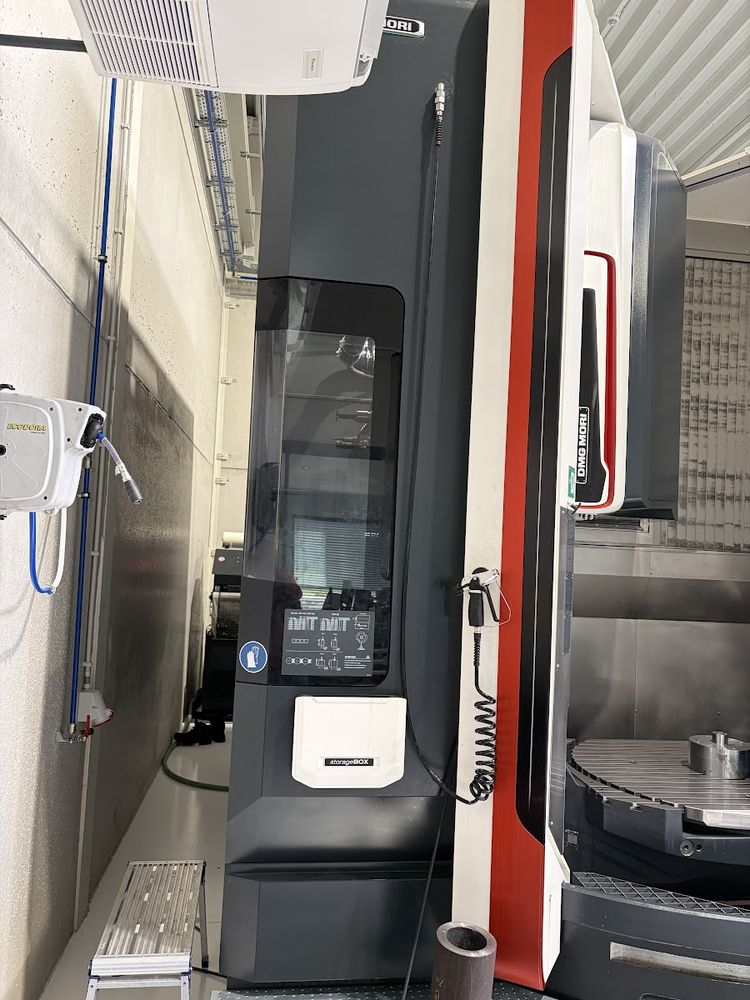

Tool magazine: Vertical chain magazine with 60 pockets capacity (selected optional equipment)
Laser and additive manufacturing (metal 3D printing)
Laser type: Fiber-guided diode laser
Laser power: 3000 W (3 kW)
Fiber diameter: 600 µm

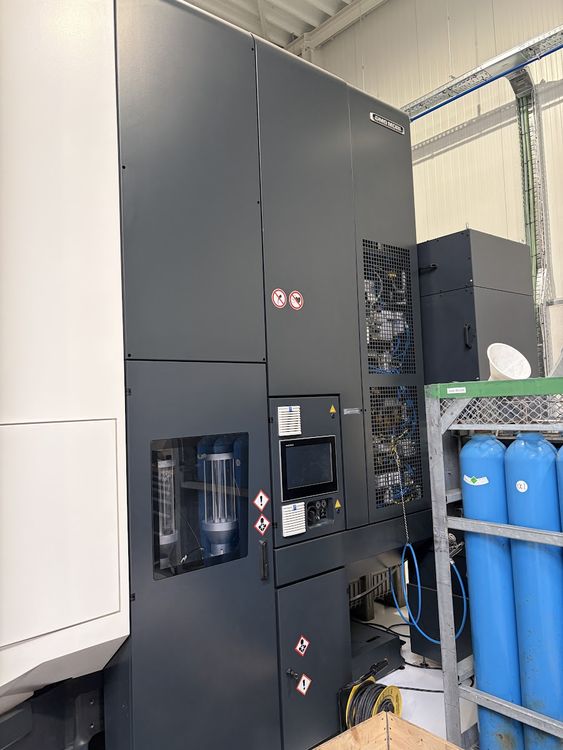

Powder feeder: Twin System with two 5-liter capacity containers for 2-channel material supply

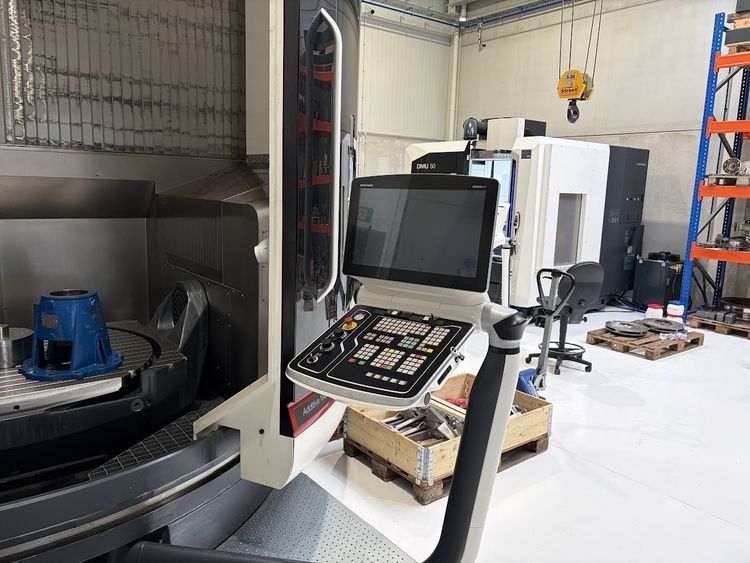

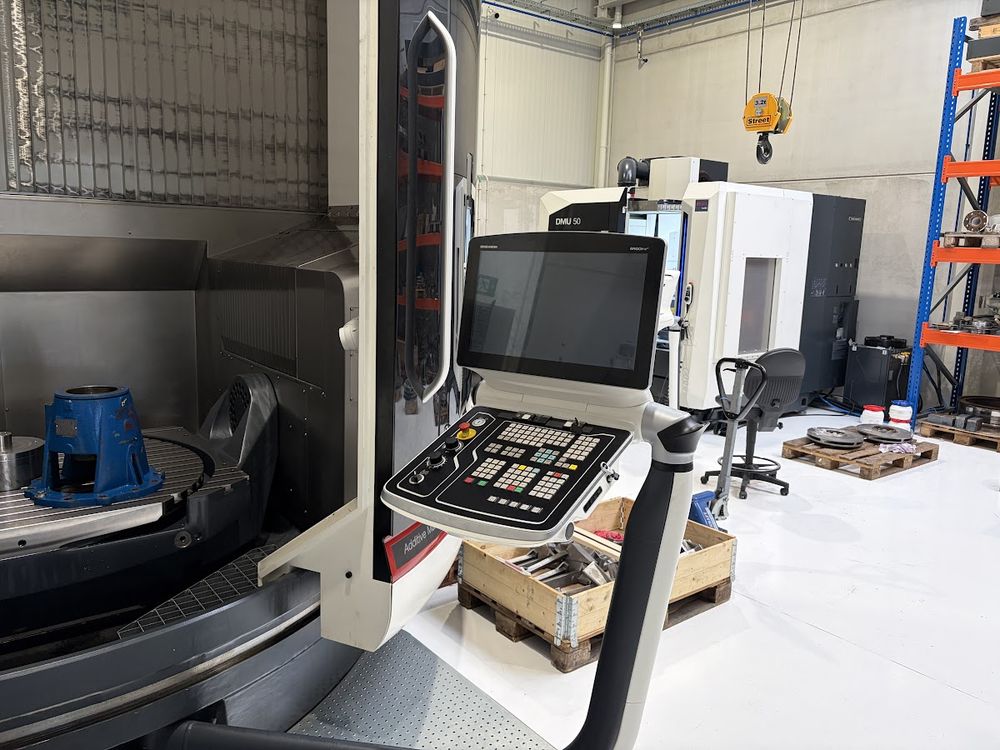

Control system: CELOS with Siemens 840D sl Operate (includes a 21.5 touch screen)
