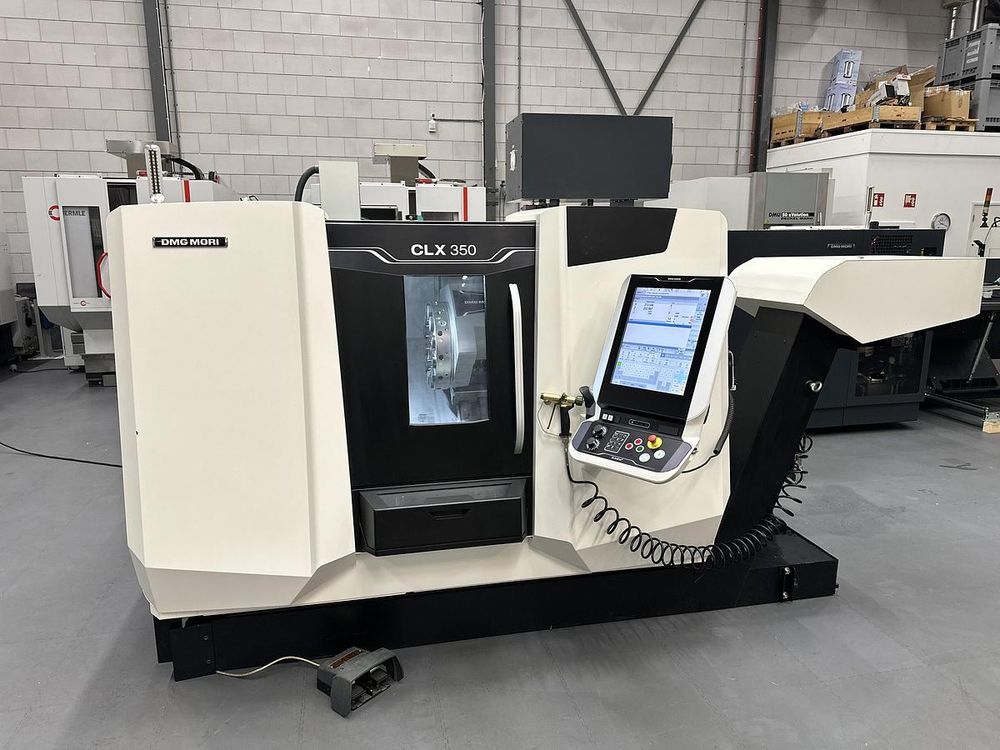

DMG MORI CLX 350 4 Axis

X-axis travel: 185 mm
Y-axis travel: ±40 mm
Z-axis travel: 530 mm
C-axis: 100 rpm, 168 Nm, 360°

Rapid feedrate (X/Y/Z): X: 30 m/min, Z: 36 m/min
Control: Siemens Sinumerik 840D Solution Line (19″ DMG MORI SLIMline)
Bar capacity: 65 mm
Max. turning diameter: 320 mm
Max. turning length: 530 mm
Spindle speed: 0–5000 rpm
Spindle power: 16.5 / 11 kW
Spindle nose: A2-6 (Hainbuch TOPlus Mini Axzug 65)
Turret: 12 positions (all driven)
Turret interface: VDI-30
Tailstock taper: MK4
Spindle hours: 1760
HAINBUCH TOPlus mini Axzug 65
3-jaw DMG MORI chuck
Chip conveyor
Siemens electronic handwheel
Workpiece catcher/discharger
Marposs measuring arm
DMG mist extraction unit
Foot pedal for spindle clamping/unclamping
Driven and static tooling
Bar feeder interface
Coolant gun (5 bar)
