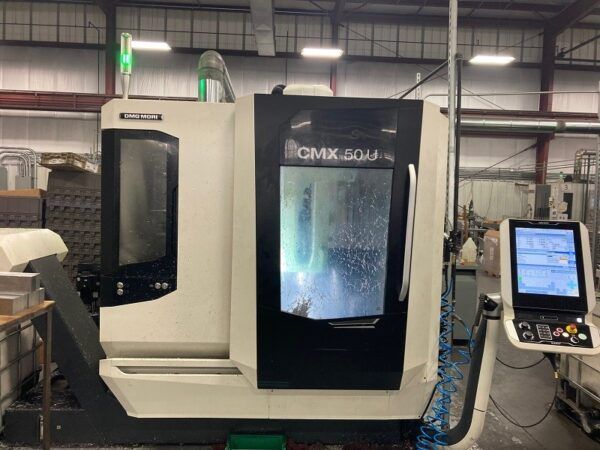

DMG MORI CMX 50 U 5 Axis

X-axis travel 19.6″
Y-axis travel 17.7″
Z-axis travel 15.74″
B-axis swivel -5 to +110°
C-axis index 0.001°
Control DMG MORI SLIMline Multi-Touch (Siemens 840D)
Display 19″ Multi-Touch Color TFT
5-axis machining capability
2 USB ports
Rotary/tilt platter integral trunnion
Chip conveyor left side exit
Spindle speed 15000 RPM
Spindle taper CAT 40 Big Plus
Spindle motor power 27.2 / 19.4 HP
Spindle torque 89.24 ft-lbs
Through spindle coolant 12 bar
Tools 60
Tool presetter Renishaw TS27R
Touch probe Renishaw PP40
Max tool diameter 2.76″
Max tool weight 17.6 lbs
Rapid traverse 1181 IPM
Machine dimensions 163″ x 140″ x 107″
Machine weight 12000 lbs
3D Quickset
Bed and ATC arm flushing via M-function
Coolant spray gun for swarf removal
External electronic handwheel
Cabin roof
Signal lamp four colors
Memory 16 MB
Graphic machining simulation
Power on time 7112 h
Cutting time 5209 h
