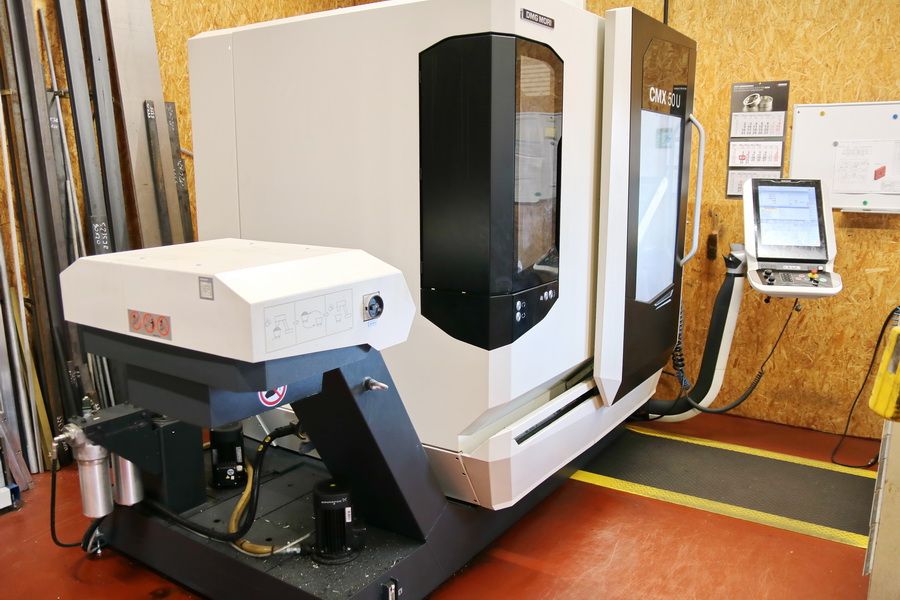

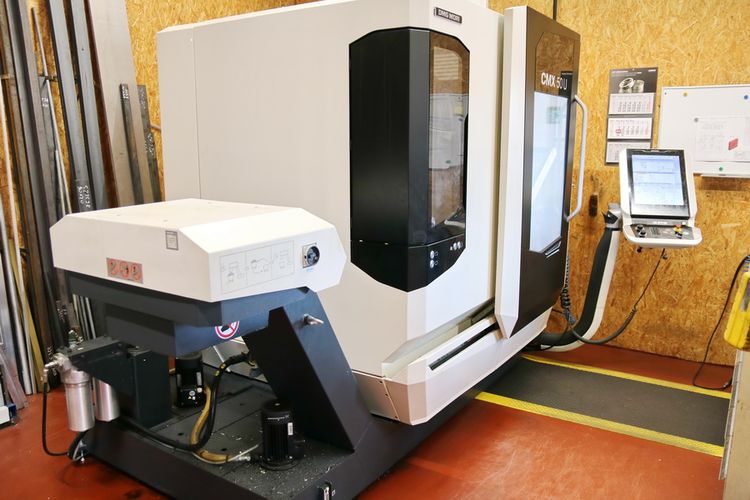

DMG MORI CMX 50 U 5 Axis

X travel 500 mm
Y travel 450 mm
Z travel 400 mm

Control SlimLine Siemens
Spindle speed up to 12,000 rpm
Spindle power 13 / 9 kW
Spindle torque 83 / 57 Nm
Tool taper SK40

Rotary tilting table
Table size 630 x 500 mm
Max table load 200 kg
Swivel range B -5 / +110°
Rotation range C 360°
T-slots 7 x 14 x 63 mm

Tool magazine capacity 30 tools
Max tool weight 8 kg
Max tool diameter 80 mm
Max tool diameter free space 130 mm
Max workpiece length 300 mm
Tool change time 2.7 sec
Chip to chip time 7.0 sec

Rapid traverse 30 m/min
Feed speed 1 – 30,000 mm/min
Feed force 4.5 kN

Chip conveyor included
Coolant system included
Through spindle coolant included
High pressure coolant 12 bar
Probe PowerProbe 40 optical
Tool setter Renishaw TS27R
Electronic handwheel included
Tool holders approx. 54 pcs
Vice 2x Garant Xpent 36 1100

Machine weight 4.7 t
Machine dimensions 4.5 x 3.5 x 3.2 m
