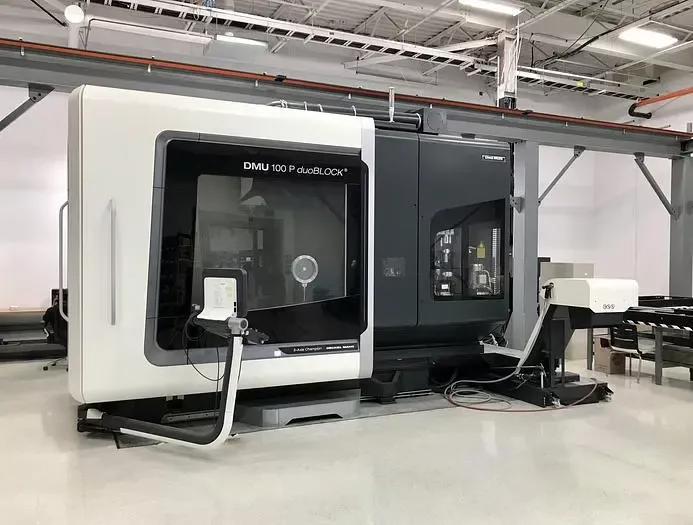

DMG MORI DMU 100P DUOBLOCK 6 Axis

DMG MORI DMU 100P DUOBLOCK
Year: 2018

Number Of Tables / Pallets 1
Table Size - L 43.3"
Table Size - W 35.4"
Weight On Table 4,850 lb
Integrated NC Rotary Table Size 45.3"
Main Spindle Horse Power 46.9 hp
Spindle Nose To Table 0"
Main Spindle Speeds 12,000 RPM
Main Spindle Taper 100
X - Axis Travel 39.4"
Y - Axis Travel 49.2"
Z - Axis Travel 39.4"
A - Axis Travel - 120 / + 10
B - Axis Travel -30 / + 180
C - Axis Travel Table Indexing .001 CONTOURING
Rapid Traverse Rate - X 2,362 in/min.
Rapid Traverse Rate - Y 2,362 in/min.
Rapid Traverse Rate - Z 2,362 in/min.
Cutting Feed Rate 2,362 in/min.
Vertical Turning Table Size, Number Of Tables 0
Vertical Turning Table Speed 0 RPM
Vertical Turning Table Horse Power 0 hp
Automatic Tool Changer 63
Tool Diameter 7.9"
Tool Length 25.6"
Tool Weight 66.1 lb
Machine Weight 54,031 lb
Control CNC (Heidenhain iTNC530)
Weight 0.00

HEIDENHAIN TNC 640 CNC CONTROL
COOLANT THRU SPINDLE
3D QUICKSET
CHIP CONVEYOR
PROBING
TOOL LENGTH MEASUREMENT PROBE
HAND HELD REMOTE PULSE GENERATOR
INNER COOLED BALL SCREWS
OPTIMAL 3 POINT SUPPORT SYSTEM
3D SIMULTANEOUS GRAPHICS
DYNAMIC COLLISION MONITORING (DCM)
WORKPIECE SIZE 63" HT. 43.3"
SIMULTANEOUS 5 AXIS MILLING B-AXIS
