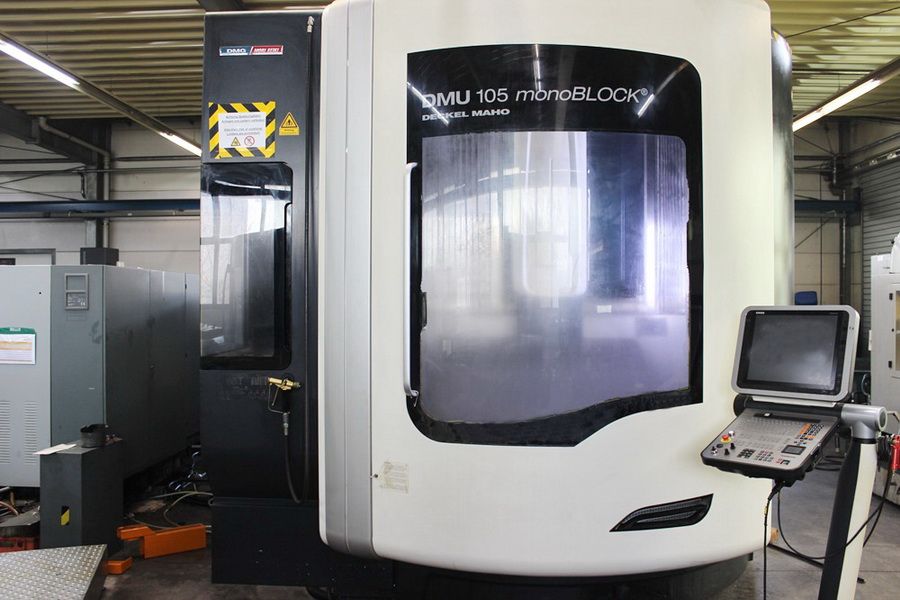

DMG MORI DMU 105 monoBLOCK 3 Axis

X travel 1135 mm
Y travel 1050 mm
Z travel 750 mm

Control iTNC 530 Heidenhain
Spindle speed up to 14,000 rpm
Spindle power 19 kW
Spindle torque 100 Nm
Tool taper HSK-A 63

Table size 1400 x 1050 mm
Max table load 2500 kg
Max workpiece size 1400 x 1240 mm
Max workpiece height 750 mm

Tool magazine capacity 30 tools
Max tool diameter 80 mm
Max tool diameter free adjacent space 160 mm
Max tool length 365 / 395 mm
Max tool weight 8 kg
Chip-to-chip time 6.1 sec

Feed rate up to 40,000 mm/min
Rapid traverse 40 m/min
Acceleration 6 m/s²
Feed force X/Y/Z 14 / 20 / 14 kN

Chip conveyor included
Coolant system included
Paper belt filter included
Internal coolant through spindle 40 bar / 23 l/min
High pressure coolant 40 bar
Electronic handwheel included
Signal light included
Vice 1 pc
Tool package 58x HSK-A 63

Machine weight 14.4 t
Machine dimensions 6.0 x 5.0 x 3.3 m
