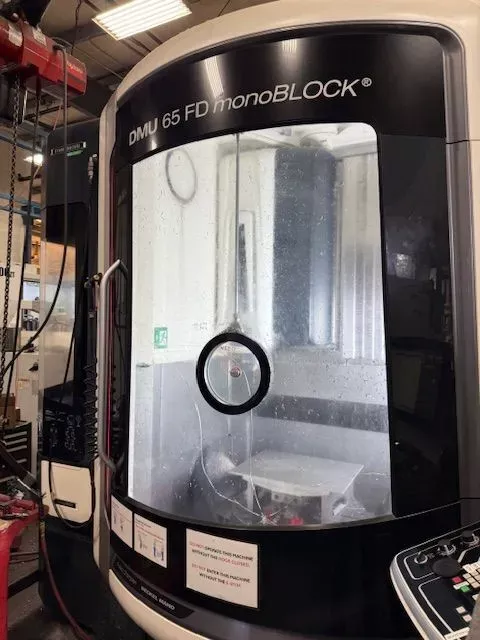

DMG MORI DMU 65 FD MONOBLOCK 5 Axis

X-Axis Travel: 28.9"
Y-Axis Travel: 25.5"
Z-Axis Travel: 22"
A-Axis Travel: ±120°
C-Axis Travel/Table Indexing: 360°
Number of Tables/Pallets: 1
Weight on Table: 1,322 lb
Integrated NC Rotary Table Size: 26.8"
Main Spindle Horsepower: 47 hp
Main Spindle Speeds: 20,000 RPM
Max Workpiece Diameter and Height: 33" x 19.6"
Main Spindle Taper: HSKA63
Rapid Traverse Rate X: 1,575 in/min
Rapid Traverse Rate Y: 1,575 in/min
Rapid Traverse Rate Z: 1,575 in/min
Cutting Feed Rate: 1,575 in/min
Vertical Turning Table Size: 26.0"
Vertical Turning Table Speed: 1,200 RPM
Vertical Turning Table Horsepower: 49.6 hp
Automatic Tool Changer: 60
Tool Diameter: 6.3"
Tool Length: 12.4"
Tool Weight: 17.6 lb
Machine Weight: 34,092 lb
Control: CELOS with Siemens 840D SI Operate CNC
Milling and Turning Capabilities
Infrared Measurement Probe Renishaw SK 40
ATC Application Turning Cycle
Package Mill/Turn HSK A63
Tool Magazine Pockets: 60 pockets SK 40
Production Package 80 bar, 980 L, Frequency Control
Rotating Clear View Window
Spray Pistol Chip Rinsing
Oil Emulsion Mist Separator
Coiling Air Blast
Tool Measuring in Machining Area Blum Lase FD
Sensor Package i4.0
Safety Package for Power Failure
Use of Angular Milling Heads in Tilted Work Plane
Angular Milling Head Measured with Blum Laser
Chip Conveyor
3D Quickset Tool Kit COR Control and Cinematic Accuracy
MPC Machine Production Control
Renishaw OMP-60 Optical Probe System
Coolant Filtration System with Paper Filter
Spindle Chiller
Pallet Proliferation Ready Package
