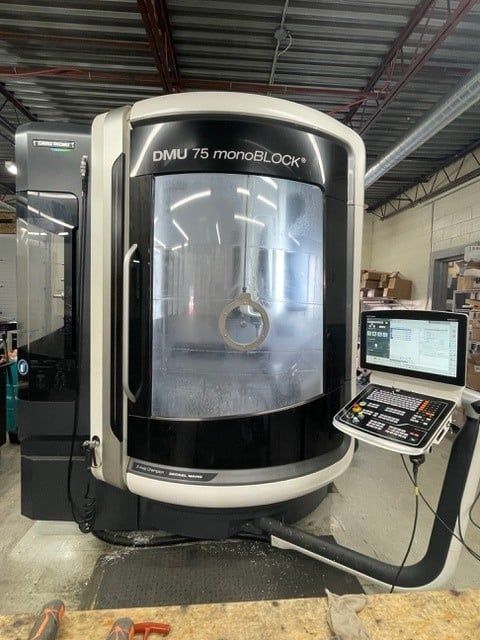

DMG MORI DMU 75 MONOBLOCK 4 Axis

X axis travel 750 mm / 29.5″
Y axis travel 650 mm / 25.6″
Z axis travel 560 mm / 22″
C axis table plate diameter 650 mm / 25.6″
Rigid table size 800 mm × 650 mm / 31.5″ × 25.6″
CELOS with Heidenhain TNC 640 21.5″ ERGOline Touch Control with Multi-Touch-Screen
Infrared measuring probe Renishaw PP60 optical (OMP 60)
3D quickSET tool kit for control and compensation of cinematic accuracy of 4/5 axis
ATC programmable feed parameter selection for machining task accuracy/surface/speed
Scraper flight conveyor with coolant unit 600 l / 160 gallon
Paper band filter discharge height 950 mm / 37.4″ width 670 mm / 26.4″
Internal coolant supply 40 bar / 23 l/min / 580 psi / 6 gallon/min through spindle centre (AD)
Cooling by air blast through spindle centre with M function
Rotating clear-view window
Coolant ring jet for vertical headstock, 16 water jets, 7 air jets
Oil and emulsion mist separator mechanical filter throughput 1100 m³/h
Blum Laser DIGILOG tool measuring in machining area for length and diameter vertically
Increased accuracy package
Electronic handwheel
Safety package for power failure with voltage control and fast deceleration trigger
Spindle speed 20000 RPM
Spindle taper HSK-A 63 to DIN 69893
Spindle power 35 kW / 46.9 HP (40% duty cycle)
Spindle power 25 kW / 33.5 HP (100% duty cycle)
Chain magazine 60 pockets
