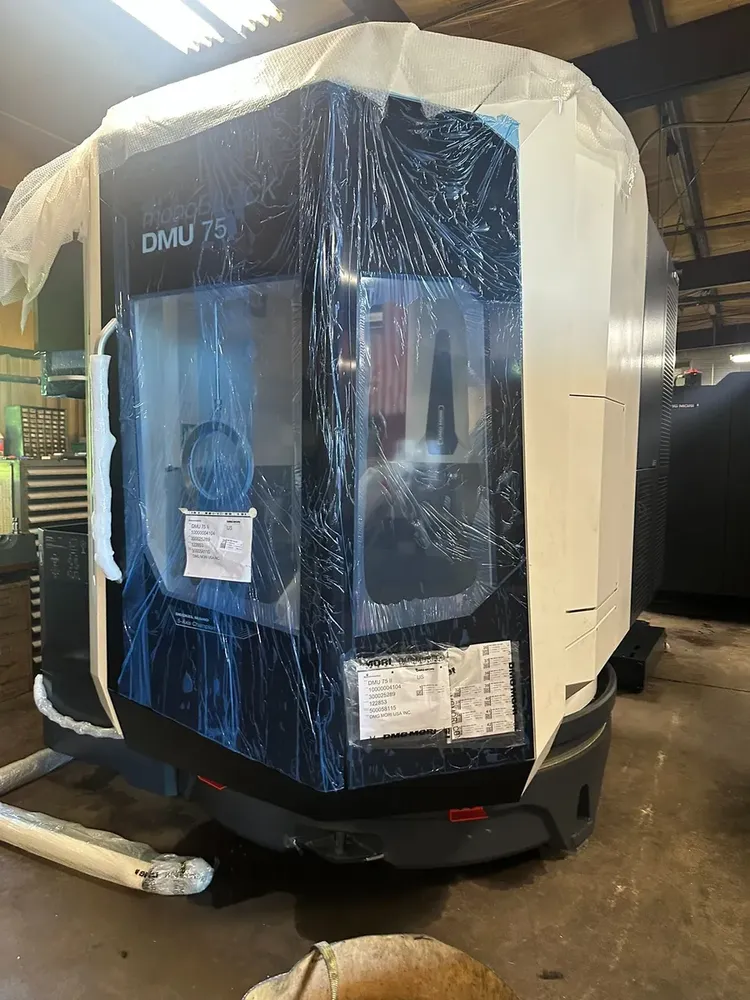

DMG MORI DMU 75 MONOBLOCK II 5 Axis

X-Axis Travel: 29.5′′
Y-Axis Travel: 525.5′′
Z-Axis Travel: 22′′
A-Axis Travel: ±120°
C-Axis Travel: 360°

Rapid Traverse Rate X-Axis: 2,362 IPM
Rapid Traverse Rate Y-Axis: 2,362 IPM
Rapid Traverse Rate Z-Axis: 2,362 IPM

Cutting Feed Rate: 2,362 IPM
CELOS with Siemens 840D SI Operate CNC Control
Spindle Chiller
Chip Conveyor
Cooling Air Blast Through Spindle
Production Package 40 Bar / 23 L/min
600 Liter Tank
Rotating Clear View Window
Coolant Ring Jet
Spray Pistol with Pump 20 Bar / 40 L/min
Oil Emission Mist Separator
Tool Measuring in Machining Area Blum Laser 3D Quick Set
Safety Package for Power Failure
Coolant Through Spindle
Infrared Measuring Probe Renishaw
Main Spindle Speed: 20,000 RPM
Main Spindle Power: 47 HP
Spindle Taper: HSK 63
Automatic Tool Changer: 60
Tool Diameter: 3.14′′
Tool Diameter: 5.1′′
Tool Length: 11.8′′
Tool Weight: 17.6 lb
Table Size: 31.5′′ × 25.5′′
Integrated NC Rotary Table Size: 25.6′′
Maximum Table Load: 1,320 lb
Maximum Workpiece Diameter: 33.8′′
Maximum Workpiece Height: 19.6′′
Number of Tables/Pallets: 1
On-Time Hours: 319
Cutting Time Hours: 111
