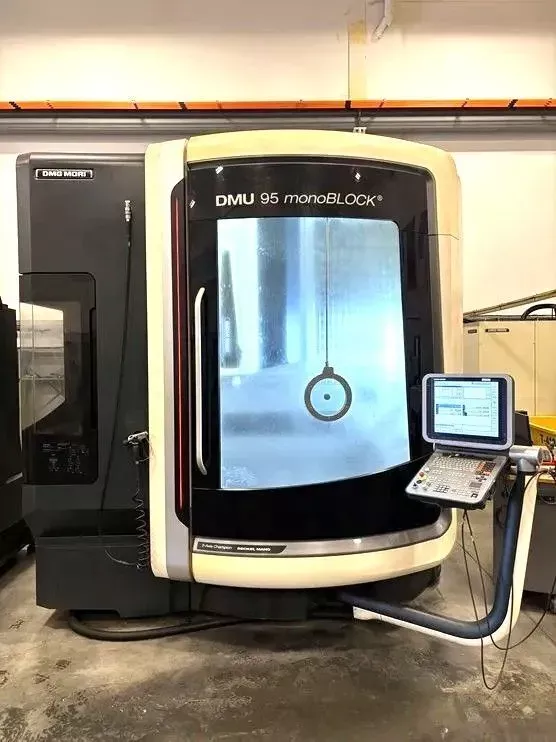

DMG MORI DMU 95 MONOBLOCK 5 Axis

X-axis travel 37.4 in
Y-axis travel 33.5 in
Z-axis travel 25.6 in
A-axis travel ±120°
C-axis rotation 360°

Rapid traverse X-axis 1,576 in/min
Rapid traverse Y-axis 1,576 in/min
Rapid traverse Z-axis 1,576 in/min

Heidenhain TNC 640 control
M Dynamics package
MPC machine protection control
Safety package for power failure
3D Quickset
3D simultaneous graphics
Dynamic collision monitoring
Inner cooled ball screws
Optimal 3 point support system
Hand held remote pulse generator
Transformer
4 color signal light

Maximum workpiece diameter 40.9 in
Maximum workpiece height 23.2 in

Spindle speed 20,000 RPM
Spindle motor 46.9 HP
Spindle taper HSK A63

Tool changer 60 ATC
Tool diameter 3.14 in
Tool diameter 6.3 in
Tool length 16.5 in
Tool weight 17.6 lb

Table size 39.3 in x 29.5 in
Integrated rotary table 33.4 in
Maximum table load 2,200 lb
Machine weight 39,462 lb

Coolant through spindle 40 bar
Coolant tank 500 L
Coolant ring jet
Spray pistol with pump
Chip conveyor
Infrared measuring probing Renishaw
Blum laser tool length measurement
Rotating clearview window
