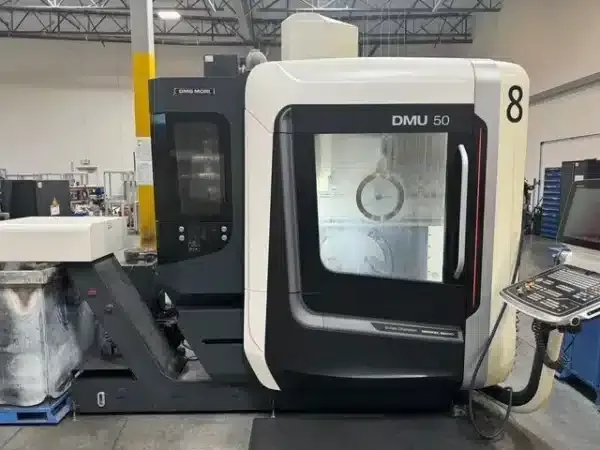

DMG MORI DMU50 GEN III 5 Axis

X-axis travel: 25.6 in
Y-axis travel: 20.4 in
Z-axis travel: 18.7 in
A-axis travel: -5° to +110°
C-axis travel: 360° table indexing
CNC control: Heidenhain TNC 640 3D color
Rapid traverse X/Y/Z: 1,654 in/min
Main spindle speed: 20,000 RPM
Main spindle power: 28 hp
Spindle taper: 63
Spindle nose to table distance: 5.9–24.6 in
Tool magazine type: Automatic tool changer
Tool magazine capacity: 30 stations
Maximum tool diameter: 3.14–5.11 in
Maximum tool length: 11.8 in
Maximum tool weight: 13.2 lb
Number of tables/pallets: 1
Table size L x W: 24.8 x 19.6 in
Maximum workpiece weight on table: 660 lb
Machine weight: 11,500 lb
3D quick set
Transformer
Chip conveyor
Handheld remote pulse generator
Spray gun for swarf removal
Air blast through spindle center
Coolant through spindle 40 bar with paper filtration system
BLUM tool length laser measurement touch probe
Infrared measuring probe PP60 optical
Rotating clear view window
Programmable roof opening by M-code
Linear scales on all axes
